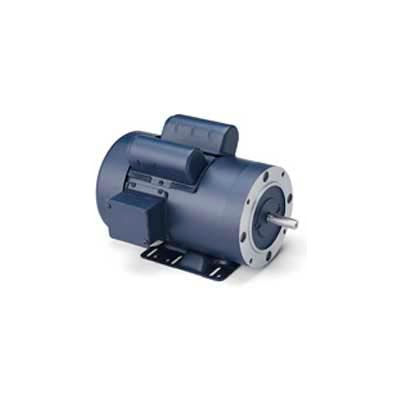

Leeson Motors Single Phase General Purpose Motor 1/3HP, 3450RPM, 56, TEFC, 115/208-230V, 60HZ

Actual product may differ from image shown

Leeson Motors Single Phase General Purpose Motor 1/3HP, 3450RPM, 56, TEFC, 115/208-230V, 60HZ

Item #: WBB588488

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$444.00 up to 50% OFF

Minimum Quantity: 60

Price: $224.95

Save $11.05 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $224.95 ea.
  • Buy 3+ $220.95 ea.

Quantity

Customers Also Viewed

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures.

Features include:

  • Durable rolled steel frame
  • Class B insulation
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

Product Specifications

  • HORSEPOWER1/3
  • ENCLOSURETEFC
  • FRAMES56C
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM3450
  • PHASE1
  • MOTOR RPM 60Hz3450
  • VOLTAGE115/208-230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1Baldor CL3405, WEG .3336ES1BB56C
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
  • FL AMPS5.6/2.5-2.8
  • BRANDLeeson
  • MANUFACTURER PART #102929.00
  • APPLICATIONSGear Reducers, Pumps, Machine Tools, Fans And Blowers, Material Handling, Compre
  • is_motorYes
