Leeson Motors Single Phase General Purpose Motor 50HZ, 1/3HP, .25KW, 1425RPM, 56, IP221, 35SF

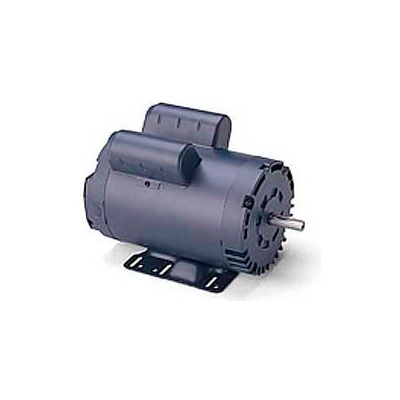

Actual product may differ from image shown

Leeson Motors Single Phase General Purpose Motor 50HZ, 1/3HP, .25KW, 1425RPM, 56, IP221, 35SF

Item #: WBB588387

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$510.00 up to 49% OFF

Minimum Quantity: 24

Price: $259.95

Save $13.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures.

Features include:

  • Durable rolled steel frame
  • Class B insulation
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

Product Specifications

  • HORSEPOWER1/3
  • ENCLOSUREIP22
  • FRAME56
  • MOUNTINGRigid
  • NAMEPLATE RPM1425
  • PHASE1
  • MOTOR RPM 50Hz1425
  • VOLTAGE110/220
  • HERTZ50
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • RPM RANGE1401-1500
  • COMPATIBLE WITH/REPLACES - 1Baldor L1206-50
  • ENCLOSURE TYPEIP
  • FRAME MATERIALRolled Steel
  • FL AMPS6.4/3.2
  • BRANDLeeson
  • MANUFACTURER PART #110394.00
  • APPLICATIONSSwimming Pool Motors, Residential And Industrial Pumps
  • is_motorYes
