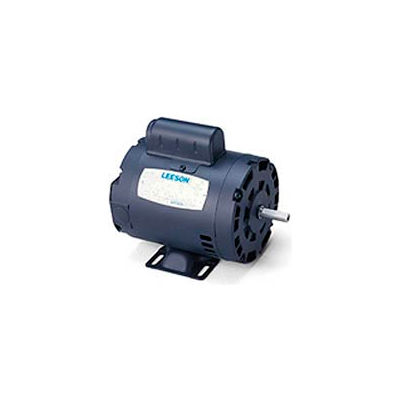

Leeson Motors-1.5HP, 115/208-230V, 1740RPM, DP, Rigid Mount, 1.15 SF, 79 Eff.

Actual product may differ from image shown

Leeson Motors-1.5HP, 115/208-230V, 1740RPM, DP, Rigid Mount, 1.15 SF, 79 Eff.

Item #: WBB222028

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$927.00 up to 51% OFF

Minimum Quantity: 24

Price: $465.95

Save $22.60 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $465.95 ea.
  • Buy 3+ $451.95 ea.

Quantity

Customers Also Viewed

General Purpose, Capacitor Start-Capacitor Run Motor: 1.5HP, 1740 RPM, Drip-Proof (DP) Enclosure, 145 Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 17.2/8.6&, Continuous duty, 1.15 Service Factor, Automatic thermal protection, Efficiency: 79, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Diameter 7/8.

Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that the motor be protected with a cover that does not restrict the flow of air to the motor.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSUREDP
  • FRAME145T
  • MOUNTINGRigid
  • NAMEPLATE RPM1740
  • PHASE1
  • MOTOR RPM 60Hz1740
  • VOLTAGE115/208-230
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • AMBIENT TEMP C40
  • SHAFT DIAMETER7/8
  • ROTATIONCCW
  • WEIGHT43
  • ULN
  • CSAY
  • LEESON MODEL NO.U145K17DB1JJ
  • UPC69172001468
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor L1321T, Marathon C186
  • BEARING-DRIVE-END6205
  • FL EFFICIENCY79
  • FL AMPS17.2/8.6-8.8
  • BRANDLeeson
  • MANUFACTURER PART #120001.00
  • is_motorYes
  • DESIGNCapacitor Start Capacitor Run
  • ENCLOSURE TYPEOpen/Drip Proof
  • FRAME MATERIALRolled Steel
