Leeson Motors-1/2HP, 115/208-230V, 3450RPM, TENV, Rigid Mount, 1.0 SF, 70 Eff.

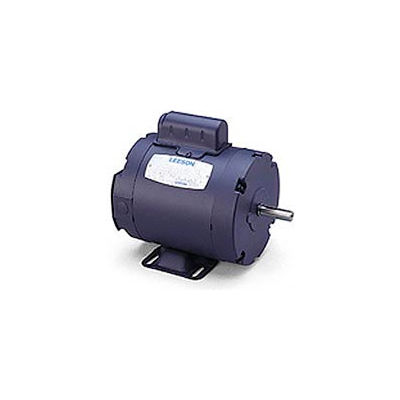

Actual product may differ from image shown

Leeson Motors-1/2HP, 115/208-230V, 3450RPM, TENV, Rigid Mount, 1.0 SF, 70 Eff.

Item #: WBB221689

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$425.00 up to 47% OFF

Minimum Quantity: 90

Price: $224.95

Save $11.25 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

General Purpose, Capacitor Start-Inductor Run Motor: 1/2HP, 3450 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 48 Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 5.8/3.1-2.9, Continuous duty, 1.0 Service Factor, No thermal protection, Efficiency: 70, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-1/2, Shaft Diameter 1/2.

Totally enclosed non-ventilated (TENV) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. Has no external cooling fan and relies on convection for cooling. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETENV
  • FRAME48
  • MOUNTINGRigid
  • NAMEPLATE RPM3450
  • PHASE1
  • MOTOR RPM 60Hz3450
  • VOLTAGE115/208-230
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1/2
  • SHAFT LENGTH1-1/2
  • ROTATIONCCW
  • WEIGHT30
  • ULY
  • CSAY
  • LEESON MODEL NO.C4C34NB3FF
  • UPC69172000483
  • RPM RANGE3001-3600
  • BEARING-DRIVE-END6203
  • FL EFFICIENCY70
  • FL AMPS5.8/3.1-2.9
  • BRANDLeeson
  • MANUFACTURER PART #100366.00
  • is_motorYes
  • DESIGNCapacitor Start Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
