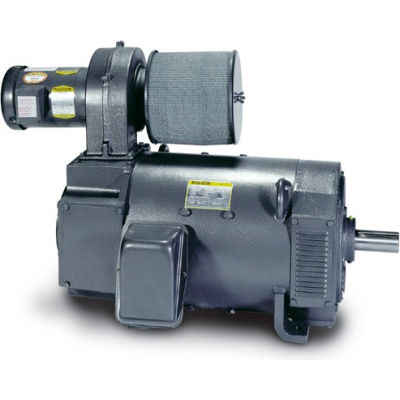

Baldor-Reliance Motor D5050P-BV, 50HP, 1750/2100RPM, DC, 328AT, DPBV, F1

Baldor-Reliance Motor D5050P-BV, 50HP, 1750/2100RPM, DC, 328AT, DPBV, F1

Item #: WBB388294

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$20,754.00 up to 39% OFF

Price: $12,718.00

$2,119.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $12,718.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 50HP,1750/2100RPM,DC,328AT,DPBV,F1

Features:
  • Includes thermostat on interpole
  • Class F insulation system resistant to dirt, carbon, dust and moisture
  • High dielectric stability
  • Low moment of inertia armature for fast response
  • Constant pressure brush springs and longer brushes for reduced maintenance
  • Includes grease fittings and reliefs for bearing maintenance
Typical Applications:
SCR drive motors for use with 3 phase rectified power; power code C or M-G sets. Maximum RPM by field weakening. Provisions for tach mounting.

Product Specifications

  • HORSEPOWER50
  • ENCLOSUREDPBV
  • FRAME328AT
  • MOUNTINGRigid
  • NAMEPLATE RPM1750
  • MOTOR RPM 60Hz1750
  • VOLTAGE500
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • WEIGHT899
  • RPM RANGE1701-1800
  • BALDOR TYPEN328
  • BLOWER KITN/A
  • FILTER KITN/A
  • FORM FACTORN/A
  • INSULATION CLASSF
  • DE BEARING6211
  • FIELD VOLTAGE150/300
  • FULL LOAD AMPS - FIELD4-2.6/2-1.3
  • MECHANICAL SPECIFICATION NUMBER1336-4
  • FRAME SIZE328AT
  • SPECIFICATION NUMBERP32816260234
  • TACH MOUNTING KITN/A
  • ODE BEARING6210
  • RECOMMENDED SCR CONTROLN/A
  • BRANDBaldor-Reliance
  • is_motorYes
  • ENCLOSURE TYPEOpen/Drip Proof
  • BALDOR CATALOG NUMBERD5050P-BV
  • BASERG
  • ARMATURE VOLTAGE500
  • ELECTRICAL SPECIFICATION NUMBER3281626
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES35.38
