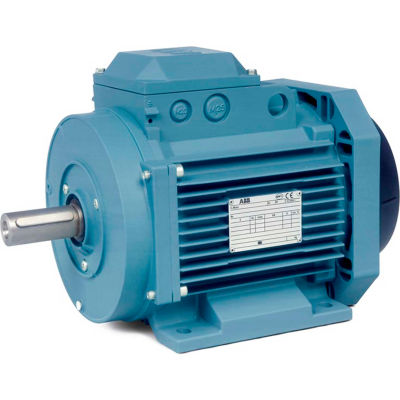

Baldor-Reliance Metric IEC Motor, MM10032-PP,3PH,230/400/460V,3000/3600RPM,3/4 KW/HP,50/60Hz, D100

Actual product may differ from image shown

Baldor-Reliance Metric IEC Motor, MM10032-PP,3PH,230/400/460V,3000/3600RPM,3/4 KW/HP,50/60Hz, D100

Item #: WBB910326

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $634.00

$105.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $634.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Metric IEC Motor, MM10032-PP, 3PH, 230/400//460V, 3000//3600RPM, 3/4 KW/HP, 50//60Hz, D100

Features
  • ABB Process Performance (severe duty) IP55 construction
  • Choice of aluminum (-AP) or cast iron (-PP) frame and endplates
  • MM catalog motors have IE2 efficiency; EMM catalog motors have IE3 efficiency per IEC 60034-30; 6 post terminal block
  • Class F insulated motors with Class B temperature limits
  • 1.0 Service Factor
  • These ratings are marked with DOE compliance number for use on 460 volt, 60 Hz; compliant for both EISA and NRCan
  • Inverter-ready
Application(s)
  • Pumps, compressors, fans, conveyors, and other general purpose three phase applications requiring IEC metric B3 base mount replacements.


Product Specifications

  • HORSEPOWER3/4
  • FRAMED100
  • MOUNTINGRigid
  • NAMEPLATE RPM3600
  • PHASE3
  • MOTOR RPM 60Hz3600
  • VOLTAGE230/400//460
  • HERTZ50//60
  • SERVICE FACTOR1
  • RPM RANGE3001-3600
  • FL EFFICIENCY85.2
  • KW/HP3/4
  • INSULATION CLASSF
  • FL AMPS5.9
  • 208V AMPS--
  • C-DIMENSION INCHES15
  • BRANDBaldor-Reliance
  • TYPEMetric IEC Motor
  • MANUFACTURER PART #MM10032-PP
  • is_motorYes
