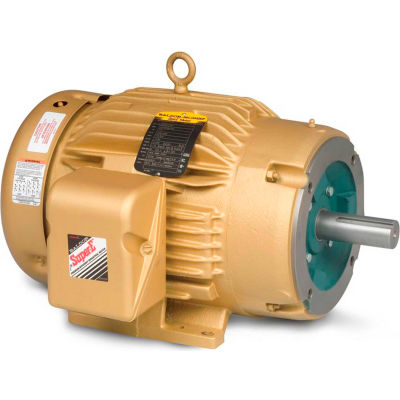

Baldor-Reliance Motor CEM3660T, 3HP, 3500RPM, 3PH, 60HZ, 182TC, 0623M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor CEM3660T, 3HP, 3500RPM, 3PH, 60HZ, 182TC, 0623M, TEFC, F1

Item #: WBB388642

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,054.00 up to 20% OFF

Price: $842.00

$140.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $842.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,3500RPM,3PH,60HZ,182TC,0623M,TEFC,F1

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME182TC
  • MOUNTINGRigid
  • NAMEPLATE RPM3460
  • PHASE3
  • MOTOR RPM 60Hz3460
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT95
  • RPM RANGE3001-3600
  • DESIGN CODEB
  • BEARING-DRIVE-END6206
  • BEARING-OPP-DRIVE-END6205
  • FL EFFICIENCY86.5
  • INSULATION CLASSF
  • FL AMPS8.2-7.6/3.8
  • KVA-CODEK
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #CEM3660T
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR87
  • DRIVE END FLANGEC-Face
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES16
  • POLES2
  • SPEC. NUMBER06F057W958G1
