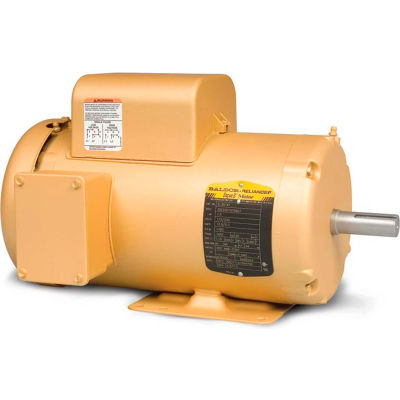

Baldor-Reliance Motor EL3403, .25HP, 1745RPM, 1PH, 60HZ, 48, 3414LC, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor EL3403, .25HP, 1745RPM, 1PH, 60HZ, 48, 3414LC, TEFC, F1

Item #: WBB390163

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$370.00 up to 14% OFF

Price: $318.95

Save $15.95 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .25HP,1745RPM,1PH,60HZ,48,3414LC,TEFC,F1

Features:
  • Heavy gauge steel frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant)copper windings
  • Low-loss electrical grade laminations steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E single phase motors are designed to conserve energy over extended time periods.

Product Specifications

  • HORSEPOWER1/4
  • ENCLOSURETEFC
  • FRAME48
  • MOUNTINGRigid
  • NAMEPLATE RPM1745
  • PHASE1
  • MOTOR RPM 60Hz1745
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.35
  • AMBIENT TEMP C40
  • WEIGHT24
  • DESIGN CODE-
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY74
  • INSULATION CLASSF
  • FL AMPS2.5/1.25
  • KVA-CODEK
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE--
  • MANUFACTURER PART #EL3403
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR89
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES10.48
  • SERIAL-NUMBER--
  • POLES4
  • SPEC. NUMBER34G374W955G1
