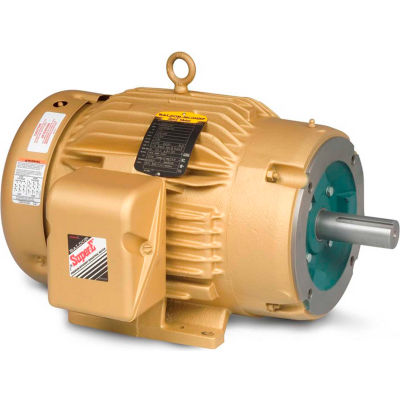

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 1165 RPM, 3 PH, 213TC, TEFC

Actual product may differ from image shown

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 1165 RPM, 3 PH, 213TC, TEFC

Item #: WBB909457

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,223.00

$203.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,223.00 or save 3% on purchase.

Quantity

Popular item in this category

Customers Also Viewed

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 1165 RPM, 3 PH, 213TC, TEFC

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Features
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Application(s)
  • Pumps, fans, conveyors, machine tools, gear reducers.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME213TC
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM1165
  • PHASE3
  • MOTOR RPM 60Hz1165
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • RPM RANGE1101-1200
  • DESIGN CODEB
  • BEARING-DRIVE-END6307
  • BEARING-OPP-DRIVE-END6206
  • FL EFFICIENCY89.5
  • INSULATION CLASSF
  • FL AMPS9.4-9/4.5
  • KVA-CODEK
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #CEM3764T
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • BALDOR CATALOG NUMBERCEM3764T
  • POWER-FACTOR71
  • C-DIMENSION INCHES19.2
  • TYPEGeneral Purpose Motor
  • SPEC. NUMBER07H058X970G1
