Baldor-Reliance General Purpose Motor, 230/460 V, 30 HP, 1770 RPM, 3 PH, 286TC, OPSB

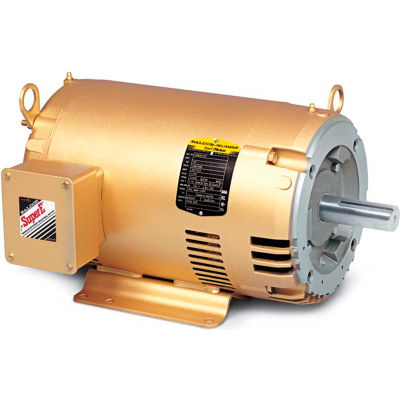

Actual product may differ from image shown

Baldor-Reliance General Purpose Motor, 230/460 V, 30 HP, 1770 RPM, 3 PH, 286TC, OPSB

Item #: WBB387784

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,021.00 up to 6% OFF

Price: $2,848.00

$474.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,848.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance General Purpose Motor, 230/460 V, 30 HP, 1770 RPM, 3 PH, 286TC, OPSB

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Features
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
  • Super-E motors have NEMA Premium efficiency
  • 3 year warranty
Application(s)
  • Pumps, fans, conveyors, machine tool, gear reducers.

Product Specifications

  • HORSEPOWER30
  • ENCLOSUREOPSB
  • FRAME286TC
  • MOUNTINGRigid
  • NAMEPLATE RPM1770
  • PHASE3
  • MOTOR RPM 60Hz1770
  • VOLTAGE230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT249
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6311
  • BEARING-OPP-DRIVE-END6309
  • FL EFFICIENCY94.1
  • INSULATION CLASSF
  • FL AMPS70/35
  • KVA-CODEG
  • DRIVE END BEARING SIZE6311
  • OPPOSITE END BEARING SIZE6309
  • 208V AMPS74.1
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #CEM2535T
  • is_motorYes
  • GREASEPOLYREX EM
  • ENCLOSURE TYPEOpen/Drip Proof
  • BALDOR CATALOG NUMBERCEM2535T
  • POWER-FACTOR85
  • DRIVE END FLANGEC-Face
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES25.06
  • TYPEGeneral Purpose Motor
  • POLES4
  • SPEC. NUMBER40D102W942G2
