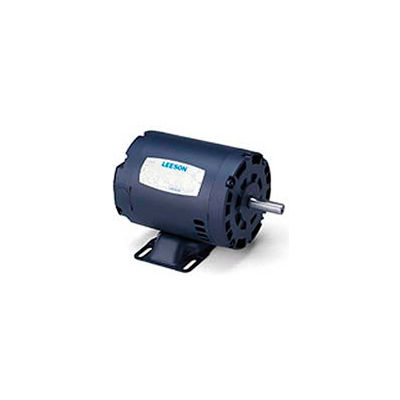

Leeson 121003.00, Premium Eff., 1 HP, 1760 RPM, 208-230/460V, 143T, DP, Rigid

Actual product may differ from image shown

Leeson 121003.00, Premium Eff., 1 HP, 1760 RPM, 208-230/460V, 143T, DP, Rigid

Item #: WBB222064

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$711.00 up to 58% OFF

Price: $308.95

Save $15.45 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $308.95 ea.
  • Buy 3+ $298.95 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 1HP, 1760/1450 RPM, Drip-Proof (DP) Enclosure, 143 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 3.2-3.2/1.6&3.4-3.4/1.7, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 85.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Diameter 7/8.

Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that the motor be protected with a cover that does not restrict the flow of air to the motor.
Rigid base allows motor to be rigidly mounted on equipment.



Product Specifications

  • HORSEPOWER1
  • ENCLOSUREDP
  • FRAME143T
  • MOUNTINGRigid
  • NAMEPLATE RPM1760
  • PHASE3
  • MOTOR RPM 60Hz1760
  • VOLTAGE208-230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • EFFICIENCY85.5
  • AMBIENT TEMP C40
  • SHAFT DIAMETER7/8
  • ROTATIONCCW/CW
  • WEIGHT40
  • ULY
  • CSAY
  • LEESON MODEL NO.C143T17DB10EE
  • UPC69172001652
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor EM3116T, WEG 00118OT3E143T, TechTop GR3-RS-OP-143T-4-B-D-1, Marathon U758
  • BEARING-DRIVE-END6205
  • COMPATIBLE WITH/REPLACES - 3Grainger/Dayton, 3KW25, 4LX01, 5N784
  • COMPATIBLE WITH/REPLACES - 2Baldor, EM3116T
  • FL AMPS3.2-3.2/1.6
  • BRANDLeeson
  • MANUFACTURER PART #121003.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPEOpen/Drip Proof
  • FRAME MATERIALRolled Steel
