Leeson 171566.60, Premium Eff., 5 HP, 1750 RPM, 208-230/460V, 184TC, TEFC, C-Face Rigid

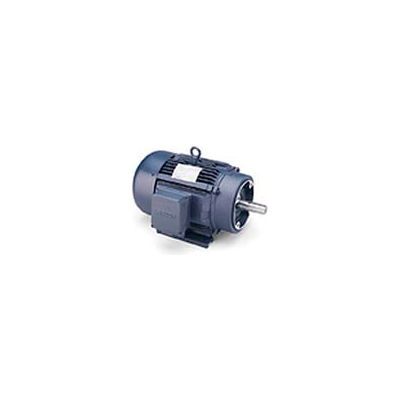

Actual product may differ from image shown

Leeson 171566.60, Premium Eff., 5 HP, 1750 RPM, 208-230/460V, 184TC, TEFC, C-Face Rigid

Item #: WBB222593

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,321.00 up to 55% OFF

Price: $617.00

$102.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $617.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $617.00 ea.
  • Buy 3+ $599.00 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 5HP, 1750/1465 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 184 Frame, Rigid C Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 14.2-13.8/6.9&11.2/5.6, Continuous duty, 1.25 Service Factor, No thermal protection, Efficiency: 87.5, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Length 2-1/4, Shaft Diameter 1 1/8.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.



Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME184TC
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM1750
  • PHASE3
  • MOTOR RPM 60Hz1750
  • VOLTAGE208-230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEEPAct
  • EFFICIENCY87.5
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1-1/8
  • SHAFT LENGTH2-1/4
  • ROTATIONCCW/CW
  • WEIGHT104
  • ULY
  • CSAY
  • LEESON MODEL NO.C184T17FK44CC
  • UPC69172025796
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor, CM3665T
  • BEARING-DRIVE-END6306
  • FL AMPS14.2-13.8/6.9
  • BRANDLeeson
  • MANUFACTURER PART #171566.60
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALCast Iron
