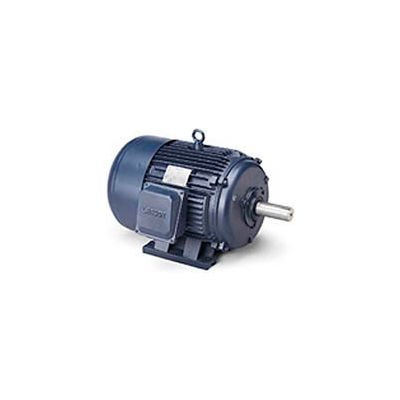

Leeson 171580.60, Premium Eff., 125 HP, 3580 RPM, 460V, 444TS, TEFC, Rigid

Actual product may differ from image shown

Leeson 171580.60, Premium Eff., 125 HP, 3580 RPM, 460V, 444TS, TEFC, Rigid

Item #: WBB222542

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$19,808.00 up to 50% OFF

Price: $9,874.00

$1,645.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $9,874.00 or save 5% on purchase.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 125HP, 3580/2980 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 444 Frame, Rigid Mount, /460V, 3PH, 60/50HZ, Name Plate Amps 136.5&130, Continuous duty, 1.25 Service Factor, No thermal protection, Efficiency: 94.5, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER125
  • ENCLOSURETEFC
  • FRAME444TS
  • MOUNTINGRigid
  • NAMEPLATE RPM3580
  • PHASE3
  • MOTOR RPM 60Hz3580
  • VOLTAGE460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEEPAct
  • EFFICIENCY94.5
  • AMBIENT TEMP C40
  • ROTATIONCCW/CW
  • WEIGHT1282
  • ULY
  • CSAY
  • LEESON MODEL NO.C444T34FB6CC
  • UPC69172008822
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1AO Smith/Magnetek, E869
  • BEARING-DRIVE-END6314
  • COMPATIBLE WITH/REPLACES - 3Leland-Faraday, M-4547
  • COMPATIBLE WITH/REPLACES - 2Baldor, M4412T-4
  • FL AMPS136.5
  • BRANDLeeson
  • MANUFACTURER PART #171580.60
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALCast Iron
