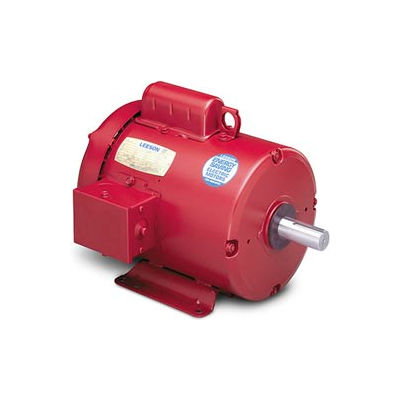

Leeson Motors - 1HP, 115/208-230V, TEFC, Rigid Mount, 1.15 S.F.

Actual product may differ from image shown

Leeson Motors - 1HP, 115/208-230V, TEFC, Rigid Mount, 1.15 S.F.

Item #: WBB217527

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$807.00 up to 68% OFF

Price: $261.95

Save $13.10 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Agricultural Motor: 1HP, 1725RPM, 143 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid Mount.

Heavy duty single phase Hi-Torque Motor is designed specifically for severe Farm duty applications.
Mechanical Features: Gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings prelubricated with Exxon POLYREX® EM grease having operating temperature range of -20°F to +350°F and special formulation to provide extra bearing protection. Rubber boot over manual protector reset button provides weather protection.
Electrical Features: Low temperature manual overload protector protects against extreme overload. Class F copper windings and varnish. Capacitor start provides high starting torque with normal starting current.



Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME143
  • BRANDLeeson
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/208-230
  • COMPATIBLE WITH/REPLACESTechTop RD1-RS-TF-143T-4-B-C-1, Marathon Z123
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONManual
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT33
  • ULY
  • CSAY
  • LEESON MODEL NO.M143C17FB13DD
  • UPC69172030812
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY74
  • DESIGNCapacitor Start Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS14/7
  • MANUFACTURER PART #121569.00
