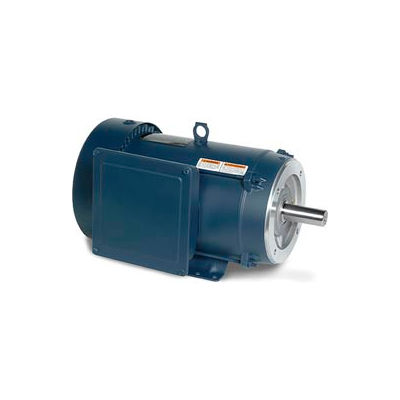

Leeson Motors - 10HP, 230V, 1740RPM, TEFC, Rigid C Mount, 1.15 S.F.

Actual product may differ from image shown

Leeson Motors - 10HP, 230V, 1740RPM, TEFC, Rigid C Mount, 1.15 S.F.

Item #: WBB217532

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,898.00 up to 61% OFF

Price: $1,128.00

$188.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,128.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Agricultural Motor: 10HP, 1740RPM, 215 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid C Mount.

Specially designed for aeration systems used on aquaculture ponds, motor is designed for dependable outdoor applications. Hi-torque motor is epoxy painted with a corrosion-resistant interior coating. Stainless hardware, fan guard, lifting lug, and conduit box cover for maximum protection against corrosion. Drain holes in the conduit box and in four positions on each end of the frame to purge condensate and moisture that may enter the motor. Ball bearings are double-sealed and lubricated with Exxon POLYREX® EM high temperature, moisture resistant lubricant.



Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAME215
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1740
  • RPM1740
  • PHASE1
  • VOLTAGE230
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONManual
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1-3/8
  • SHAFT LENGTH INCHES3
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT155
  • ULN
  • CSAY
  • UPC69172025578
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY86.5
  • DESIGNCapacitor Start Capacitor Run
  • BEARING-DRIVE-END6207
  • FL AMPS40
  • MANUFACTURER PART #140705.00
