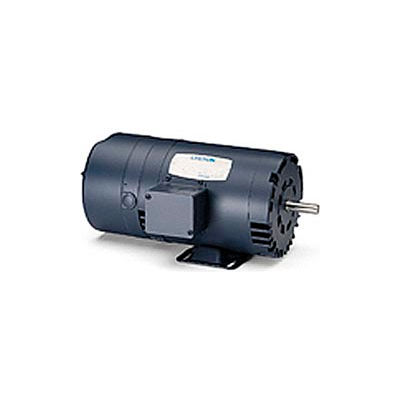

Leeson Motors - 3/4HP, 208-230/460V, 1725RPM, DP, Rigid Mount, 1.25 S.F.

Actual product may differ from image shown

Leeson Motors - 3/4HP, 208-230/460V, 1725RPM, DP, Rigid Mount, 1.25 S.F.

Item #: WBB217720

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,248.00 up to 51% OFF

Price: $636.00

$106.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $636.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $636.00 ea.
  • Buy 3+ $617.00 ea.

Quantity

Customers Also Viewed

Brake Motor: 3/4HP, 1725RPM, 56 Frame, Drip-Proof (DP), 208-230/460V, 3PH, Continuous duty, No thermal protection, 1.25 Service Factor, Rigid Mount.

Fail-safe positive, stop and hold brake motors. Brakes are spring set. Load is stopped automatically when power is turned off. Brake motors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor. Three phase motors have brake coils rated 230/460 VAC, 60 Hz.


Product Specifications

  • HORSEPOWER3/4
  • ENCLOSUREDP
  • FRAME56
  • BRANDLeeson
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE3
  • VOLTAGE208-230/460
  • NAMEPLATE AMPS2.8/1.4
  • COMPATIBLE WITH/REPLACESBaldor BM3112
  • HERTZ60
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW/CW
  • ENCLOSURE TYPEOpen/Drip Proof
  • WEIGHT32
  • ULY
  • CSAY
  • LEESON MODEL NO.C6T17DB47CC
  • UPC69172001338
  • DUTYContinuous
  • MANUFACTURERS PART NUMBER114163.00
  • RPM RANGE1701-1800
  • FL EFFICIENCY77
  • DESIGNSq Cage Inductor Run
  • BEARING-DRIVE-END6203
