WEG Compressor Duty Motor, 00636OS1XCD182/4Y, 6.4 HP, 3600 RPM, 240 Volts, ODP, 1 PH

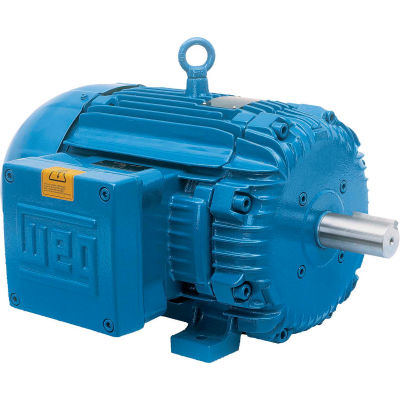

Actual product may differ from image shown

WEG Compressor Duty Motor, 00636OS1XCD182/4Y, 6.4 HP, 3600 RPM, 240 Volts, ODP, 1 PH

Item #: WBB881598

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $392.95

Quantity Discount

  • Buy 1-2 $392.95 ea.
  • Buy 3+ $377.95 ea.

Quantity

Popular item in this category

Customers Also Viewed

WEG Compressor Duty Motor, 00636OS1XCD182/4Y, 6.4 HP, 3600 RPM, 240 Volts, ODP, 1 PH

These high quality motors are designed to meet the high torque requirements of air compressor loads. Ball bearings designs and manual reset thermal protection are standard features on all ratings. These heavy duty motors are rolled steel constructions NEMA 56 frames. Special electrical and mechanical features ensure reliable service and long motor life.

Product Specifications

  • ENCLOSUREDP
  • FRAME182/4Y
  • BRANDWEG
  • MOUNTINGRigid
  • MOTOR RPM 60Hz3600
  • RPM3600
  • PHASE1
  • VOLTAGE240
  • HERTZ60
  • SERVICE FACTOR1
  • ENCLOSURE TYPEOpen/Drip Proof
  • MANUFACTURERS PART NUMBER00636OS1XCD182/4Y
  • RPM RANGE3001-3600
  • FL AMPS23
  • TYPECompressor Duty Motors
  • KILOWATS4.8
  • C-DIMENSION INCHES15.650
  • FL EFFICIENCY85
Customer Review

Not Yet Reviewed

Product Q & A

There are 2 questions and 2 answers for this product.

  • What is the length and diameter of the shaft on this motor. I need a shaft one inch in diameter. Because the hole on my pulley is one inch also my pulley is made for 2 belts.

    Question Asked By: Lacey, April 11, 2016

    Answer This Question

    Question Answered By:

    • Product Expert, April 11, 2016

      Motor Shaft Diameter: 7/8" Motor Shaft Length: 2 1/4" They do not manufacture amy motor which has a 1" diameter.

  • What is the diameter of the shaft?

    Question Asked By: Lacey, April 11, 2016

    Answer This Question

    Question Answered By:

    • anonymous

      Hello, The diameter of the shaft is 7/8". Thank you for your interest in our product!
