Baldor-Reliance Motor IDXM7006, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, XPFC, F1

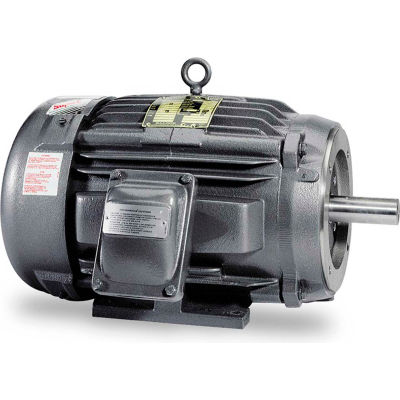

Actual product may differ from image shown

Baldor-Reliance Motor IDXM7006, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, XPFC, F1

Item #: WBB389352

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,XPFC,F1

Features:
  • U.L. and CSA approved for hazardous locations
  • Class I, Group D, Class II, Group F & G, T3C
  • Temperature rating T3C (160°C)
  • 3HP and larger Class I, Group D only
  • Temperature Code T2A(280°C)
  • 1.0 service factor
  • Class F insulation
  • Thermostats
  • All ratings constant horsepower 60 to 90 Hz.
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Designed for use in hazardous locations with Inverters.

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSUREXPFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1735
  • RPM1735
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEExplosion Proof
  • WEIGHT39
  • DUTYContinuous
  • RPM RANGE1701-1800
  • VARIABLE-TORQ-HERTZ60
  • ROTOR-INERTIA0.0768
  • SLIP-HERTZ2.2
  • is_motorYes
  • FL EFFICIENCY82.5
  • NAMEPLATE-SERIAL-NUMBER--
  • TEMP. CODET3C
  • SERIAL-NUMBER--
  • SPEC. NUMBER35M998P862G1
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS1.6/.8
  • MANUFACTURER PART #IDXM7006
  • INVERTER-TYPEPWM
  • CONSTANT-HP-HERTZ90
  • CONSTANT-TORQ-HERTZ60
  • MAGNETIZING-CURRENT1/.5
  • MAXIMUM-RPM2700
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES14.3
  • POLES4
  • INSULATION CLASSF
