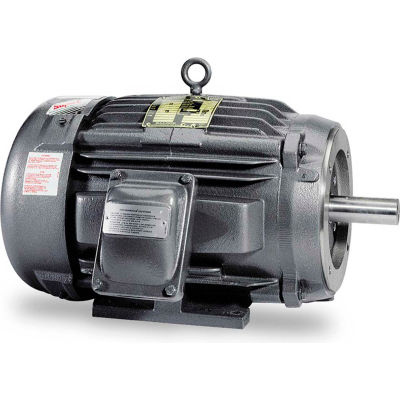

Baldor-Reliance Motor IDXM7144T, 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0640M, XPFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor IDXM7144T, 5HP, 1750RPM, 3PH, 60HZ, 184TC, 0640M, XPFC, F1

Item #: WBB389150

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,798.00 up to 20% OFF

Price: $1,437.00

$239.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,437.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,3PH,60HZ,184TC,0640M,XPFC,F1

Features:
  • U.L. and CSA approved for hazardous locations
  • Class I, Group D, T2B
  • Temperature rating T3C (160°C)
  • 3HP and larger Class I, Group D only
  • Temperature Code T2A(280°C)
  • 1.0 service factor
  • Class F insulation
  • Thermostats
  • All ratings constant horsepower 60 to 90 Hz.
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Conveyors, Pumps and other equipment in food processing and other severe environments where motors are washed on a regular basis. For adjustable speed applications not requiring full torque at zero speed.

Product Specifications

  • HORSEPOWER5
  • ENCLOSUREXPFC
  • FRAME184TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1750
  • RPM1750
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEExplosion Proof
  • WEIGHT158
  • DUTYContinuous
  • RPM RANGE1701-1800
  • VARIABLE-TORQ-HERTZ60
  • ROTOR-INERTIA0.4
  • SLIP-HERTZ1.7
  • is_motorYes
  • FL EFFICIENCY89.5
  • NAMEPLATE-SERIAL-NUMBER--
  • TEMP. CODET2B
  • SERIAL-NUMBER--
  • SPEC. NUMBER06J010W352G1
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS13/6.5
  • MANUFACTURER PART #IDXM7144T
  • INVERTER-TYPEPWM
  • CONSTANT-HP-HERTZ90
  • CONSTANT-TORQ-HERTZ30
  • MAGNETIZING-CURRENT6.8/3.4
  • MAXIMUM-RPM2700
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES18.24
  • POLES4
  • INSULATION CLASSF
