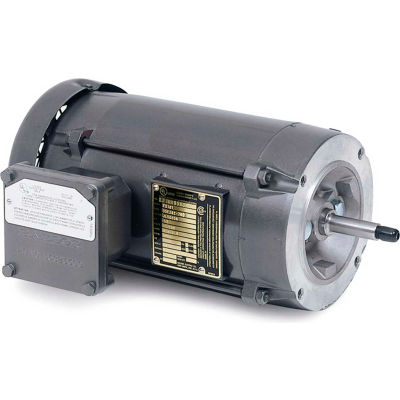

Baldor-Reliance Motor JL5009A, 1HP, 3450RPM, 1PH, 60HZ, 56J, 3524L, XPFC, F1, N

Actual product may differ from image shown

Baldor-Reliance Motor JL5009A, 1HP, 3450RPM, 1PH, 60HZ, 56J, 3524L, XPFC, F1, N

Item #: WBB389000

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$730.00 up to 20% OFF

Price: $583.00

$97.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $583.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,3450RPM,1PH,60HZ,56J,3524L,XPFC,F1,N

Features:
  • Explosion proof U.L. and CSA, Class I, Group D, Class II, Group F & G, T4
  • U.L. approved conduit box mounted on motor
  • Epoxy paint
Typical Applications:
Pumping applications where hazardous location motors are required.

Product Specifications

  • HORSEPOWER1
  • ENCLOSUREXPFC
  • FRAME56J
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEExplosion Proof
  • WEIGHT48
  • DUTYContinuous
  • RPM RANGE3001-3600
  • 208V AMPS--
  • KVA-CODEK
  • is_motorYes
  • POWER-FACTOR81
  • FL EFFICIENCY66
  • NAMEPLATE-SERIAL-NUMBER--
  • TEMP. CODET4
  • SERIAL-NUMBER--
  • SPEC. NUMBER35E382-498
  • DESIGN CODEN
  • DOE-CODE--
  • FL AMPS12/6
  • MANUFACTURER PART #JL5009A
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES15.68
  • POLES2
  • INSULATION CLASSB
