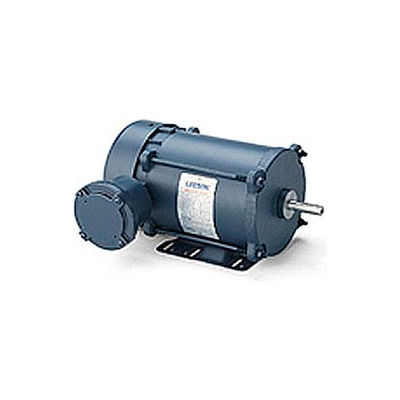

Leeson Motors - 1/3HP, 208-230/460V, 1140/950RPM, EPNV, Rigid Mount, 1.0 S.F.

Actual product may differ from image shown

Leeson Motors - 1/3HP, 208-230/460V, 1140/950RPM, EPNV, Rigid Mount, 1.0 S.F.

Item #: WBB217624

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,239.00 up to 51% OFF

Price: $623.00

$103.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $623.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $623.00 ea.
  • Buy 3+ $602.00 ea.

Quantity

Customers Also Viewed

Explosion-Proof Motor: 1/3HP, 1140/950RPM, 56 Frame, EPNV, 208-230/460V, 3PH, Continuous duty, Automatic thermal protection, 1.0 Service Factor, Rigid Mount.

Features: Rugged mechanical construction meeting all requirements for safety. UL and CSA listed. Double shielded, pre-lubricated ball bearings are standard. All motors have inherent automatic overload protection. NEMA 1.0 Service Factor except as noted. Explosion-proof conduit box included at no extra cost. Normally-closed thermostats are standard on cast iron motors. Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.



Product Specifications

  • HORSEPOWER1/3
  • ENCLOSUREEPNV
  • FRAME56
  • BRANDLeeson
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1140
  • MOTOR RPM 50Hz950
  • RPM1140/950
  • PHASE3
  • VOLTAGE208-230/460
  • COMPATIBLE WITH/REPLACESBaldor M7003A, Marathon K2101
  • HERTZ60/50
  • SERVICE FACTOR1
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • EFFICIENCY76.5
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW/CW
  • ENCLOSURE TYPEExplosion Proof
  • WEIGHT42
  • ULY
  • CSAY
  • LEESON MODEL NO.A6T11EB21FF
  • UPC69172001029
  • DUTYContinuous
  • RPM RANGE1101-1200
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • BEARING-DRIVE-END6203
  • FL AMPS1.5-1.5/.75
  • MANUFACTURER PART #111940.00
