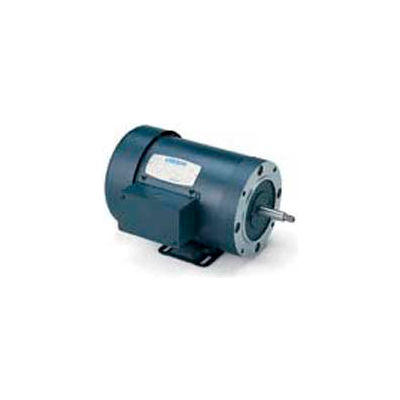

Leeson Motors 3-Phase Pump Motor 1HP, 3450RPM, Nan, DP, 208-230/460V, 60HZ, 40C, 1.15SF, Rigid C

Actual product may differ from image shown

Leeson Motors 3-Phase Pump Motor 1HP, 3450RPM, Nan, DP, 208-230/460V, 60HZ, 40C, 1.15SF, Rigid C

Item #: WBB588470

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$521.00 up to 49% OFF

Minimum Quantity: 52

Price: $265.95

Save $13.30 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

General Specifications:

Rugged, three phase jet pump motors for industrial service.NEMA 56 C face. Stator impregnated with heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision inside oversized gasketed conduit box. 380 alloy aluminum endplate with cast bearing seat insert. Neoprene shaft flinger to repel moisture and other contaminants.Mechanical bearing lock, shaft end, controls axial movement. UL and CSA recognized.

Shaft Material:

303 stainless steel, threaded.

Bearings

203 Double-sealed ball bearing, shaft-end; 203 Double-shielded ball bearing, switchend. Shaft-end bearing is locked to limit axial movement of the shaft.

Electrical Specifications:

Explosion-proof motors have automatic overload protection. Others have no thermal overload protection.

Product Specifications

  • HORSEPOWER1
  • ENCLOSUREDP
  • FRAMES56J
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE3
  • MATERIALRolled Steel
  • VOLTAGE208-230/460
  • COMPATIBLE WITH/REPLACESBaldor CJM3115, WEG 00136OS3EJPR56J, Marathon J050
  • HERTZ60
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEOpen/Drip Proof
  • RPM RANGE3001-3600
  • APPLICATIONSSwimming Pool Motors, Residential And Industrial Pumps, Circulating Pumps,
  • MANUFACTURER PART NUMBER101775.00
  • is_motorYes
