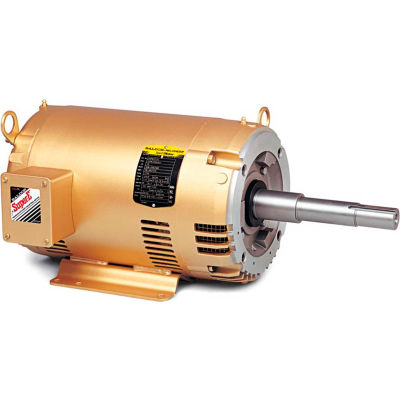

Baldor-Reliance Pump Motor, EJMM2531T, 3 Phase, 25 HP, 230/460 Volts, 1760 RPM, 60 HZ, OPSB, 284JM

Actual product may differ from image shown

Baldor-Reliance Pump Motor, EJMM2531T, 3 Phase, 25 HP, 230/460 Volts, 1760 RPM, 60 HZ, OPSB, 284JM

Item #: WBB910265

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,519.00

$419.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,519.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Pump Motor, EJMM2531T, 3 Phase, 25 HP, 230/460 Volts, 1760 RPM, 60 HZ, OPSB, 284JM

Our pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion proof ratings. Applications for these run the gamut from swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.

Features
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
  • Three year warranty
Application(s)
  • Designed for operations where continuous or frequent duty is required. Usable for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit. Super-E motors are designed to conserve energy over extended time periods.

Product Specifications

  • HORSEPOWER25
  • ENCLOSUREOPSB
  • FRAME284JM
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1760
  • RPM1760
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEOpen/Drip Proof
  • DUTYContinuous
  • MANUFACTURERS PART NUMBEREJMM2531T
  • RPM RANGE1701-1800
  • 208V AMPS62
  • KVA-CODEG
  • is_motorYes
  • POWER-FACTOR86
  • FL EFFICIENCY93.6
  • GREASEPOLYREX EM
  • SPEC. NUMBER40E211W273G1
  • BEARING-DRIVE-END6312
  • DESIGN CODEB
  • DOE-CODE010A
  • FL AMPS58/29
  • BEARING-OPP-DRIVE-END6309
  • TYPEPump Motor
  • C-DIMENSION INCHES24.69
  • INSULATION CLASSF
