Baldor-Reliance Motor VECP84106T-4, 20HP, 3510RPM, 3PH, 60HZ, 256TC, 0942M, TEFC, F

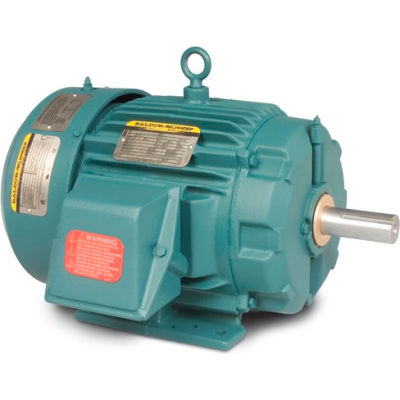

Actual product may differ from image shown

Baldor-Reliance Motor VECP84106T-4, 20HP, 3510RPM, 3PH, 60HZ, 256TC, 0942M, TEFC, F

Item #: WBB391183

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,420.00 up to 20% OFF

Price: $2,731.00

$455.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,731.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 20HP,3510RPM,3PH,60HZ,256TC,0942M,TEFC,F

Features:
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Typical Applications:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Product Specifications

  • HORSEPOWER20
  • ENCLOSURETEFC
  • FRAME256TC
  • BRANDBaldor-Reliance
  • MOUNTINGNo Mounting
  • MOTOR RPM 60Hz3510
  • RPM3510
  • PHASE3
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6309
  • RPM RANGE3001-3600
  • # OF ROTOR BARS28
  • EFFICIENCY-290.2
  • is_motorYes
  • KVA-CODEG
  • POWER-FACTOR91
  • CUSTOMER-PART-NUMBER--
  • FL EFFICIENCY91.7
  • MAX. KVAR2
  • TEMP. CODET3
  • GREASEPOLYREX EM
  • SERIAL-NUMBER--
  • SPEC. NUMBER09H404Y947
  • # OF STATOR SLOTS36
  • BEARING-DRIVE-END6309
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS22
  • MAX. SPACE HEATER TEMP.--
  • MANUFACTURER PART #VECP84106T-4
  • SPACE-HEATER-AMPS--
  • WEIGHT LBS.310
  • SPACE-HEATER-VOLTS--
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES25.19
  • POLES2
  • INSULATION CLASSF
