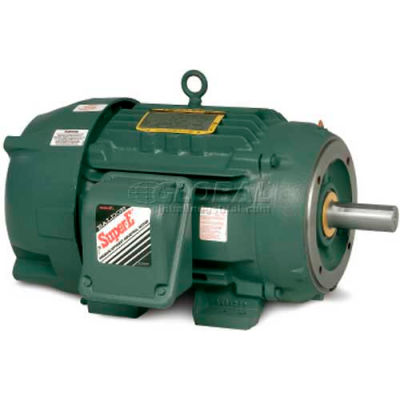

Baldor-Reliance Severe Duty Motor, CECP84107T-4, 3 PH, 25 HP, 460 V, 3520 RPM, TEFC, 284TSC Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, CECP84107T-4, 3 PH, 25 HP, 460 V, 3520 RPM, TEFC, 284TSC Frame

Item #: WBB910130

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,865.00

$644.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,865.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, CECP84107T-4, 3 PH, 25 HP, 460 V, 3520 RPM, TEFC, 284TSC Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Super-E® Premium efficient windings
  • 460 Volt
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant ISR® (Inverter Spike Resistant®) copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • 5 year warranty
Application(s)
  • Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

Product Specifications

  • HORSEPOWER25
  • ENCLOSURETEFC
  • FRAME284TSC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz3520
  • RPM3520
  • PHASE3
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6311
  • DUTYContinuous
  • RPM RANGE3001-3600
  • is_motorYes
  • EFFICIENCY-290.2
  • KVA-CODEF
  • POWER-FACTOR90
  • FL EFFICIENCY91.7
  • GREASEPOLYREX EM
  • SPEC. NUMBER10G310X791
  • BEARING-DRIVE-END6311
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERCECP84107T-4
  • DOE-CODE010A
  • FL AMPS28.5
  • MANUFACTURER PART #CECP84107T-4
  • TYPESevere Duty Motor
  • C-DIMENSION INCHES26.56
  • INSULATION CLASSF
