Baldor-Reliance Severe Duty Motor, ECP84103T-4, 3 PH, 25 HP, 460 V, 1770 RPM, TEFC, 284T Frame

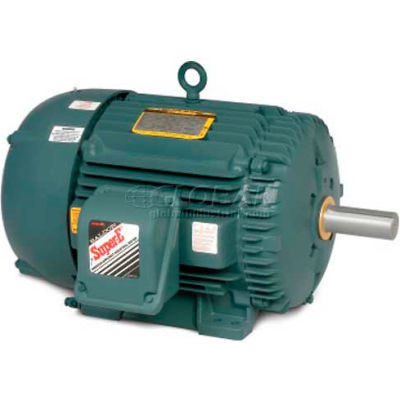

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, ECP84103T-4, 3 PH, 25 HP, 460 V, 1770 RPM, TEFC, 284T Frame

Item #: WBB909367

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,977.00

$496.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,977.00 or save 3% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84103T-4, 3 PH, 25 HP, 460 V, 1770 RPM, TEFC, 284T Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Application(s)
  • Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Product Specifications

  • HORSEPOWER25
  • ENCLOSURETEFC
  • FRAME284T
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1770
  • RPM1770
  • PHASE3
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6311
  • DUTYContinuous
  • RPM RANGE1701-1800
  • EFFICIENCY-292.4
  • is_motorYes
  • KVA-CODEG
  • POWER-FACTOR84
  • FL EFFICIENCY93.6
  • GREASEPOLYREX EM
  • SPEC. NUMBER10G187X312G1
  • BEARING-DRIVE-END6311
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERECP84103T-4
  • DOE-CODE010A
  • FL AMPS30
  • MANUFACTURER PART #ECP84103T-4
  • TYPESevere Duty Motor
  • C-DIMENSION INCHES27.93
  • INSULATION CLASSF
