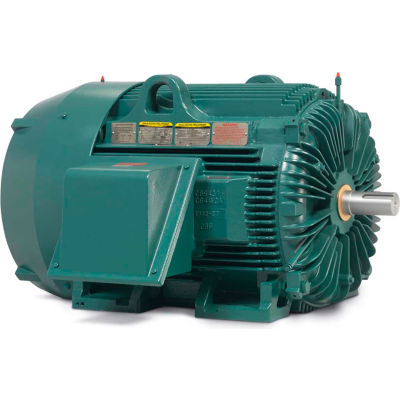

Baldor-Reliance Severe Duty Motor, ECP84407T-5, 3 PH, 200 HP, 575 V, 1785 RPM, TEFC, 447T Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, ECP84407T-5, 3 PH, 200 HP, 575 V, 1785 RPM, TEFC, 447T Frame

Item #: WBB909165

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $18,228.00

$3,038.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $18,228.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84407T-5, 3 PH, 200 HP, 575 V, 1785 RPM, TEFC, 447T Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Application(s)
  • Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

Product Specifications

  • HORSEPOWER200
  • ENCLOSURETEFC
  • FRAME447T
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1785
  • RPM1785
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6318
  • DUTYContinuous
  • RPM RANGE1701-1800
  • EFFICIENCY-295.4
  • KVA-CODEG
  • is_motorYes
  • POWER-FACTOR87
  • FL EFFICIENCY96.2
  • EFFICIENCY-196.5
  • GREASEPOLYREX EM
  • SPEC. NUMBERP44G3976
  • BEARING-DRIVE-END6318
  • DESIGN CODEB
  • FL AMPS178
  • MANUFACTURER PART #ECP84407T-5
  • TYPESevere Duty Motor
  • C-DIMENSION INCHES48.24
  • INSULATION CLASSF
