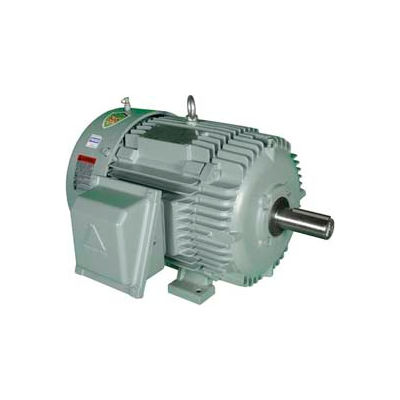

Hyundai T-Frame Motor IEEE150-36-445TS, TEFC, Rigid, 3 PH, 445TS, 460V, 161.5 FLA

Actual product may differ from image shown

Hyundai T-Frame Motor IEEE150-36-445TS, TEFC, Rigid, 3 PH, 445TS, 460V, 161.5 FLA

Item #: WBB763560

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $9,735.00

$1,622.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $9,735.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Hyundai T-Frame Motor IEEE150-36-445TS, TEFC, Rigid, 3 PH, 445TS, 460V, 161.5 FLA

Features

  • 1 - 250 HP
  • Parker Hannifan ProTech IP66 labrynth seals on
  • 3600, 1800 and 1200 RPM
  • Both drive-end and opposite drive-end bearings
  • Single voltage, 460 volts
  • CSA Certified for Class I, Division 2,
  • TEFC enclosure
  • Groups A, B, C, D
  • Dual rated service factor
  • Inverter duty, 10:1 CT / 1000:1 VT
  • 1.15 for 40C / 1.0 for 65C
  • Inverter shield insulation and inverter grade
  • Class F insulation with Class H varnish,
  • Magnet wire meets or exceeds NEMA MG-1 Part 31
  • Double dip and bake cycles
  • For exceptional corona and transient protection
  • Rigid base
  • Class B temperature rise
  • Full compliance with IEEE-841, version 2009
  • IP55 degree of protection
  • Meets or exceeds EISA 2007 efficiency
  • NEMA design B torque
  • Requirements defined in NEMA MG-1
  • IEEE-841 motor test report supplied with each motor
  • Table 12-12
  • 5 year warranty

Product Specifications

  • HORSEPOWER150
  • ENCLOSURETEFC
  • FRAME445TS
  • BRANDHyundai
  • MOUNTINGRigid
  • MOTOR RPM 60Hz3600
  • RPM3600
  • PHASE3
  • VOLTAGE460
  • COMPATIBLE WITH/REPLACESBaldor ECP84413T-4, WEG 15036ST3QIE445TS-W22
  • SERVICE FACTOR1.15
  • ENCLOSURE TYPETotally Enclosed
  • RPM RANGE3001-3600
  • APPLICATIONS--
  • INCLUDES--
  • FL AMPS161.5
  • MANUFACTURER PART #IEEE150-36-445TS
  • WEIGHT LBS.1770
  • is_motorYes
  • FL EFFICIENCY95
