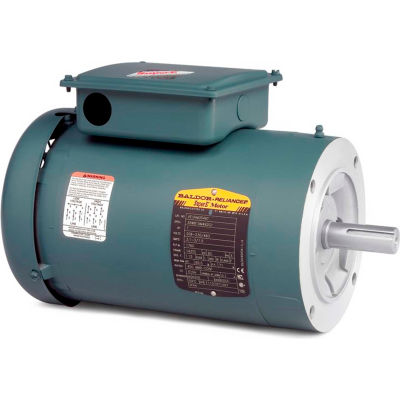

Baldor-Reliance Unit Handling Motor, VEUHM3546T-5, 3 PH, 1 HP, 575 V, 1760 RPM, TEFC, 143TC Frame

Actual product may differ from image shown

Baldor-Reliance Unit Handling Motor, VEUHM3546T-5, 3 PH, 1 HP, 575 V, 1760 RPM, TEFC, 143TC Frame

Item #: WBB910193

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $493.95

Save $24.70 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Unit Handling Motor, VEUHM3546T-5, 3 PH, 1 HP, 575 V, 1760 RPM, TEFC, 143TC Frame

Baldor-Reliance's line of Unit handling motors are designed for a wide variety of applications in baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door openers. These motors are available from stock in ratings of ½ HP thru 10HP (56 thru 215T frames) with or without Dodge D-Series brakes. Features include an oversized top mounted conduit box on 56 & 140T frames that provide easy access for making connections. Footed frames include slotted feet for easy mounting.

Features
  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
Application(s)
  • Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME143TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1760
  • RPM1760
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • DUTYContinuous
  • MANUFACTURERS PART NUMBERVEUHM3546T-5
  • RPM RANGE1701-1800
  • SPECIFICATION NUMBER35W819M849G1
  • 208V AMPS--
  • KVA-CODEL
  • POWER-FACTOR71
  • FL EFFICIENCY85.5
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERVEUHM3546T-5
  • DOE-CODE010A
  • FL AMPS1.2
  • TYPEUnit Handling Motor
  • C-DIMENSION INCHES13.29
  • INSULATION CLASSF
