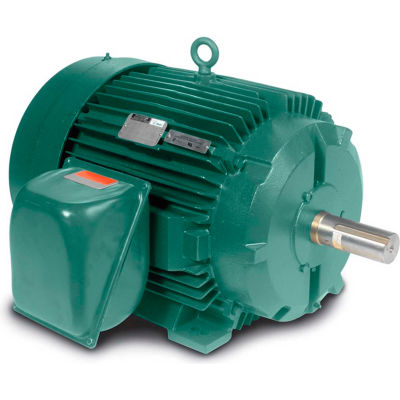

Baldor-Reliance Motor IDVSM4104T, 30HP, 1800RPM, 3PH, 60HZ, 286TC, TEFC, FOOT

Baldor-Reliance Motor IDVSM4104T, 30HP, 1800RPM, 3PH, 60HZ, 286TC, TEFC, FOOT

Item #: WBB389318

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,022.00 up to 18% OFF

Price: $4,131.00

$688.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,131.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 30HP,1800RPM, 3PH,60HZ,286TC,TEFC,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER30
  • ENCLOSURETEFC
  • FRAME286TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1770
  • RPM1770
  • PHASE3
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT450
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA3.7
  • BRG-ODE-AFBMA50BC03JP30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP28G1089
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2660
  • BALDOR CATALOG NUMBERIDVSM4104T
  • BRG-DE-AFBMA50BC03JP30X
  • CONSTANT-TORQ-HERTZ41.66736111
  • MOTOR-BASE-AMPS76.2/38.1
  • MOTOR-BASE-HP30
  • TYPEP
  • MAGNETIZING-CURRENT30.8/15.4
  • MAXIMUM-RPM5400
  • MOTOR-BASE-VOLTS230/460
  • DRIVE END FLANGEC-Face
  • MOTOR-MAX-AMPS70.6/35.3
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES27.44
  • MOTOR-BASE-RPM1775
  • POLES4
  • RELIANCE NUMBERW00980A A 003
  • MOTOR-MAX-HP30
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
