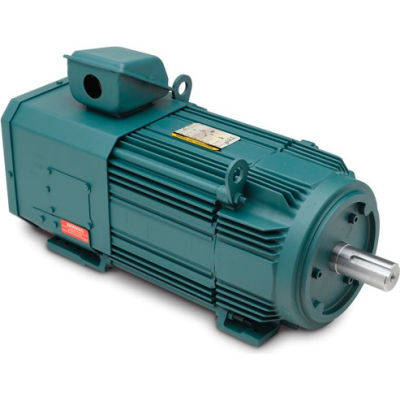

Baldor-Reliance Motor ZDNRPM18054C, 5HP, 1750RPM, 3PH, 60HZ, 1838C, TENV, FOOT

Baldor-Reliance Motor ZDNRPM18054C, 5HP, 1750RPM, 3PH, 60HZ, 1838C, TENV, FOOT

Item #: WBB391858

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,019.00 up to 18% OFF

Price: $4,128.00

$688.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,128.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,3PH,60HZ,1838C,TENV,FOOT,

Features:
  • Compact square laminated steel frame FL210-L440 (FL180 is extruded aluminum) for vector duty 1000:1 constant torque
  • Premium class H insulation, 40 C ambient, 1.0 S.F.
  • Three normally closed thermostats (one per phase)
  • VPI insulation & insulated O.D.E. bearing is standard on all L440 frames
  • Includes 1024 ppr hollow shaft encoder with MS twist lock connector
Typical Applications:
Test stands, extruders, conveyors, crane & hoist systems, converting, web processing, traction duty, winders, printing.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETENV
  • FRAMEFL1838C
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1770
  • RPM1770
  • PHASE3
  • VOLTAGE230/460
  • HERTZN/A
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT165
  • DUTY--
  • RPM RANGE1701-1800
  • is_motorYes
  • POWER-FACTOR--
  • FL EFFICIENCY--
  • SPEC. NUMBERP18T369
  • CODE--
  • DESIGN CODE--
  • BALDOR CATALOG NUMBERZDNRPM18054C
  • FL AMPS--
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES17.87
  • POLES4
  • INSULATION CLASSH
