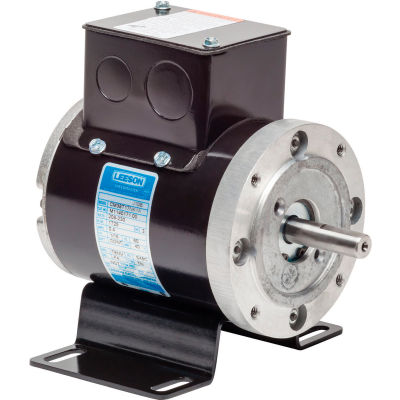

Leeson Motors AC Integral  38Fr, Inverter Rated, 230V, 3PH, 60HZ, TENV

Leeson Motors AC Integral 38Fr, Inverter Rated, 230V, 3PH, 60HZ, TENV

Item #: WBB587454

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$384.00 up to 43% OFF

Price: $219.95

Save $11.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Design Specifications:

  • Sub-FHP AC .
  • Totally enclosed for continuous duty, general purpose applications.
  • All rated for 60/50 Hz operation except hi-torque single-phase which are 60 Hz only.
  • Gearbox has rugged aluminum die cast housing, for maximum gear and bearing support.
  • Precision machined gearing, hardened for maximum load capability.
  • All gearing designed and rated to AGMA
  • Class 9 standards and to withstand momentary shock overload of 200%.
  • Oversized output bearings for greater overhung load capacity and longer life.
  • High-carbon alloy output shaft provides maximum strength and rigidity. All needle bearing journals are precision-ground after heat treating, to provide maximum finish and fit.
  • Single lip, spring loaded, heavy-duty industrial oil seals help keep lubricant in and dirt out.
  • Gears and bearings are splash lubricated with permanent, heavy-duty gear oil.

Product Specifications

  • FRAMES48C
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1800
  • RPM1800
  • PHASE3
  • VOLTAGE208-230
  • HERTZ60
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • MANUFACTURERS PART NUMBERM1140171.00
  • RPM RANGE1701-1800
  • APPLICATIONSConveyors, Packaging Machines, Machine Tools, Laboratory Equipment
  • is_motorYes
