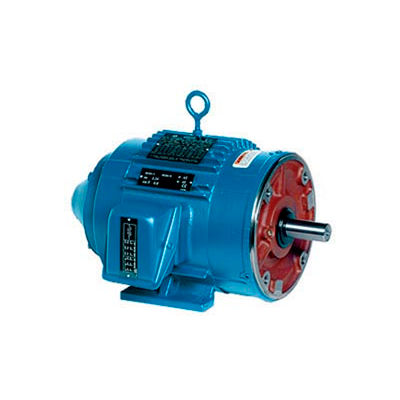

Leeson Motors - 7.5HP, 230/460V, 1775RPM, TENV, Rigid Mount, 1.0 S.F.

Leeson Motors - 7.5HP, 230/460V, 1775RPM, TENV, Rigid Mount, 1.0 S.F.

Item #: WBB217612

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,340.00 up to 51% OFF

Price: $1,700.00

$283.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,700.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $1,700.00 ea.
  • Buy 3+ $1,649.00 ea.

Quantity

Customers Also Viewed

Inverter Motor: 7.5HP, 1775RPM, 213 Frame, Totally-Enclosed Non-Ventilated (TENV), 230/460V, 3PH, INVERTER duty, No thermal protection, 1.0 Service Factor, Rigid Mount.

Features: Class H inverter-rated IRISTM insulation system Constant torque operation from 0 to base RPM rating on Vector Drives Constant HP operation to twice base RPM rating for 143T-256T frame, 1.5 x base RPM for all other sizes Designed for optimum performance with IGBT inverters - not for across-the-line starting C-face with rigid base through 100HP Normally closed thermostats (one per phase) Continuous duty at 40° C ambient 1.0 Service Factor (Class B rise on TEBC motors) Premium quality, cast iron frame and endbells 284T and larger are blower-cooled with a separately powered three-phase blower motor to provide added cooling at low speeds Ball bearings (Roller bearings available 360-frame and larger) Field convertible to F2 mounting Encoder provisions included on opposite drive end. UL Recognized and CSA Certified Three-Year Limited Warranty Meets NEMA MG1, parts 30 and 31



Product Specifications

  • HORSEPOWER7 1/2
  • ENCLOSURETENV
  • FRAME213
  • BRANDLeeson
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1775
  • RPM1775
  • PHASE3
  • VOLTAGE230/460
  • NAMEPLATE AMPS21/10.5
  • COMPATIBLE WITH/REPLACESBaldor IDNM3770T, Marathon Y595
  • HERTZ60
  • SERVICE FACTOR1.0
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • EFFICIENCY90.2
  • CONSTRUCTIONCast Iron
  • AMBIENT TEMP C40
  • SHAFT LENGTH INCHES3
  • ROTATIONCCW/CW
  • ENCLOSURE TYPETotally Enclosed
  • SHAFT END BEARING309
  • WEIGHT220
  • ULY
  • CSAY
  • UPC69172021130
  • DUTYInverter
  • MANUFACTURERS PART NUMBER810157.00
  • RPM RANGE1701-1800
  • is_motorYes
  • DESIGNSq Cage Inv Duty
