Baldor CFSWDM3546-5E, Food Safe, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N

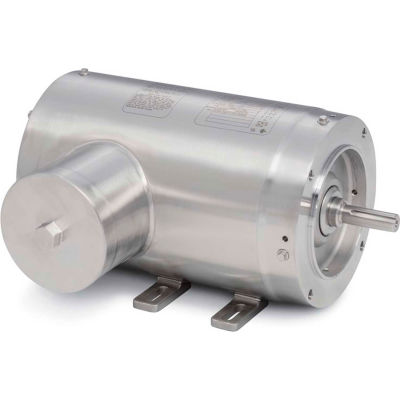

Actual product may differ from image shown

Baldor CFSWDM3546-5E, Food Safe, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N

Item #: WBB2330098

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,270.72

$211.79/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Baldor CFSWDM3546-5E, Food Safe, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N

Baldor-Reliance Food safe IP69 motors are designed to perform reliably- at maximum efficiency- around the clock and be effectively cleaned to a hygienic level to ensure uncompromised food safety.

Stainless Steel
  • An all stainless-steel construction safeguards against corrosion to avoid costly downtime and repairs.
Encapsulation/Potted Leads
  • Hardened epoxy resin completely encapsulates the windings for an additional layer of internal protection against water and humidity. The encapsulation extends into the conduit box to prevent moisture from entering the winding.
Shaft Seals
  • Our two-barrier mechanical seal prevents water from entering at the shaft extension of the motor. The viton material is chemical resistant, withstands high temperature, and direct spray.
Rotatable Conduit Box
  • The middle portion of our 3-piece conduit box can be rotated 360 degrees (at 90 degree increments) to rotate the lead opening in the direction you need it.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETENV
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGFace and Foot
  • RPM1800
  • PHASE3
  • MATERIALStainless Steel
  • VOLTAGE575
  • HERTZ60
  • SHAFT LENGTH1.875
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNONE
  • EFFICIENCY TYPEPREMIUM
  • EFFICIENCY0.855
  • AMBIENT TEMP C40
  • SHAFT DIAMETER0.625 in
  • ROTATIONANY
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT41
  • DUTYCONT
  • RPM RANGE1701-1800
  • is_motorYES
  • APPROVALS"UR, CSA"
  • MANUFACTURERS PART#CFSWDM3546-5E
  • DESIGNB
  • BEARING-DRIVE-ENDSealed Bearing
  • BALDOR CATALOG NUMBERCFSWDM3546-5E
  • FL AMPS1.2 A
