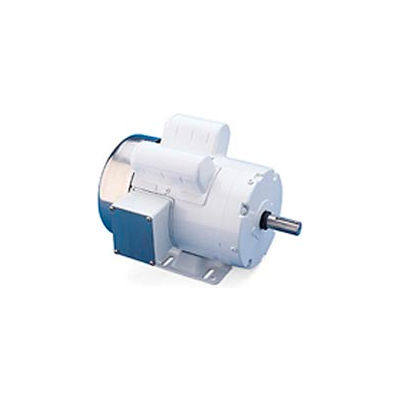

Leeson Motors Motor Washdown Motor-1.5HP, 115/208-230V, 1740RPM, TEFC, RIGID, 1.15 SF, 71 Eff.

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1.5HP, 115/208-230V, 1740RPM, TEFC, RIGID, 1.15 SF, 71 Eff.

Item #: WBB228158

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,184.00 up to 49% OFF

Minimum Quantity: 24

Price: $603.00

$100.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $603.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Washguard White Epoxy Motor, Single Phase: 1.5HP, 1740 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, RIGID, 115/208-230V, 1PH, 60HZ, Name Plate Amps 19/9.5, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 71, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Diameter: 7/8.

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • 10:1 ratio for constant or variable torque at 1.0 SF


Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETEFC
  • FRAME145
  • BRANDLeeson
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1740
  • RPM1740
  • PHASE1
  • VOLTAGE115/208-230
  • NAMEPLATE AMPS19/9.5
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT50
  • ULY
  • CSAY
  • LEESON MODEL NO.C145C17WB1KK
  • UPC69172001576
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY71
  • CATALOG NUMBER120590.00
  • DESIGNCapacitor Start Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS19/9.5
  • MANUFACTURER PART #120590.00
