Leeson Motors Motor Washdown Motor-1HP, 115/208-230V, 3450RPM, TEFC, RIGID C, 1.15 SF, 70 Eff.

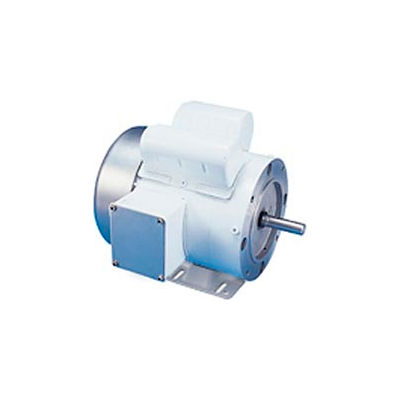

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-1HP, 115/208-230V, 3450RPM, TEFC, RIGID C, 1.15 SF, 70 Eff.

Item #: WBB228196

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$702.00 up to 48% OFF

Price: $362.95

Save $18.15 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Washguard White Epoxy Motor, Single Phase: 1HP, 3450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, RIGID C, 115/208-230V, 1PH, 60HZ, Name Plate Amps 12/6.2-6, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 70, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8.

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • 10:1 ratio for constant or variable torque at 1.0 SF


Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE1
  • VOLTAGE115/208-230
  • NAMEPLATE AMPS12/6.2-6
  • COMPATIBLE WITH/REPLACESBaldor CWDL3509, Marathon N542
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT34
  • ULY
  • CSAY
  • LEESON MODEL NO.C6C34WK6MM
  • UPC69172001212
  • DUTYContinuous
  • RPM RANGE3001-3600
  • is_motorYes
  • FL EFFICIENCY70
  • CATALOG NUMBER113583.00
  • DESIGNCapacitor Start Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS12/6.2-6
  • MANUFACTURER PART #113583.00
