Baldor-Reliance Washdown Motor CSSEWDM3555, 3 PH, 2 HP, 3500 RPM, 208-230/460 V, TEFC, 56C FR

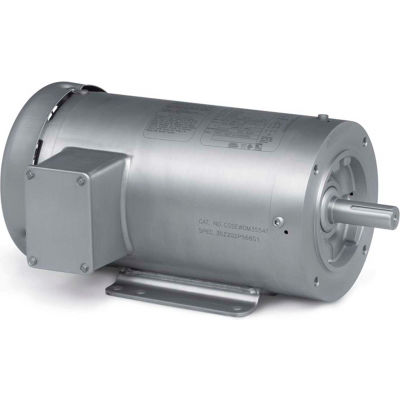

Actual product may differ from image shown

Baldor-Reliance Washdown Motor CSSEWDM3555, 3 PH, 2 HP, 3500 RPM, 208-230/460 V, TEFC, 56C FR

Item #: WBB909665

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $1,225.00

$204.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,225.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Washdown Motor CSSEWDM3555, 3 PH, 2 HP, 3500 RPM, 208-230/460 V, TEFC, 56C FR

Baldor-Reliance's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.

Features
  • Class H insulated motor with 1.15 service factor or higher
  • All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft and base
  • Moisture resistant insulation system
  • Endplate rabbets have O-ring seals to band
  • Conduit box is welded to the motor frame
  • Patented bearing seal to protect motor bearings, inside and out
  • Epoxy encapsulation prevents any moisture from reaching the windings as well as potting the passage between the band and the conduit box
  • Nameplate information is laser etched on the band
  • NEMA Premium® efficiency
  • 3 year warranty
Application(s)
  • Food processing, packaging, outdoor and highly corrosive environments

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETEFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz3500
  • RPM3500
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • DUTYContinuous
  • RPM RANGE3001-3600
  • SPECIFICATION NUMBER35Z176Q044G1
  • 208V AMPS5.4
  • is_motorYes
  • KVA-CODEM
  • POWER-FACTOR90
  • FL EFFICIENCY86.5
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERCSSEWDM3555
  • FL AMPS5.4-5/2.5
  • MANUFACTURER PART #CSSEWDM3555
  • BEARING-OPP-DRIVE-END6205
  • TYPEWashdown Motor
  • C-DIMENSION INCHES14.75
  • INSULATION CLASSH
