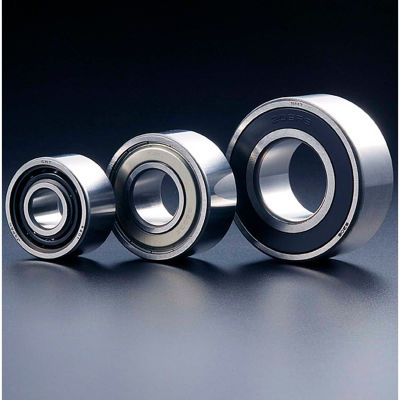

SMT 5203-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 40mm, Bore 17mm, Metric

SMT 5203-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 40mm, Bore 17mm, Metric

Item #: WBB1876323

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 2

Price: $18.25

Save $0.91 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

SMT 5203-2RS Double Row Angular Contact Ball Bearing, Double Sealed, OD 40mm, Bore 17mm, Metric

SMT 5200 series Double Row Angular Contact Ball Bearings consist of two single row angular contact ball bearings matched Back to Back arrangement, with inner and outer rings integrated. These bearings have the same bores and outside diameters as the corresponding bearings, 6200 series. SMT 5200 series are suitable for increased axial and radial rigidity in applications that design limits space. The contact angle is 30 degree inverted outside.

Product Specifications

  • BRANDSMT
  • BORE DIAMETER MILLIMETERS17
  • OUTER DIAMETER MILLIMETERS40
  • WIDTH MILLIMETERS17.5
  • DYNAMIC LOAD RATING (N)12800
  • STATIC LOAD RATING (N)7900
  • GREASE RPM11000
  • HOUSING CORNER RADIUS MAX (mm)0.6
  • CAGE MATERIALCarbon Steel
  • CONTACT ANGLE30
  • BEARING TYPEDouble Sealed
  • LUBRICATION TYPEShell Alvania S2, Prepacked
  • TOLERANCEISO Normal
  • MANUFACTURERS PART NUMBER5203-2RS
  • OPERATING TEMPERATURE-13 to 212°F
  • SHAFT FILLET CORNER RADIUS MAX (mm)0.6
