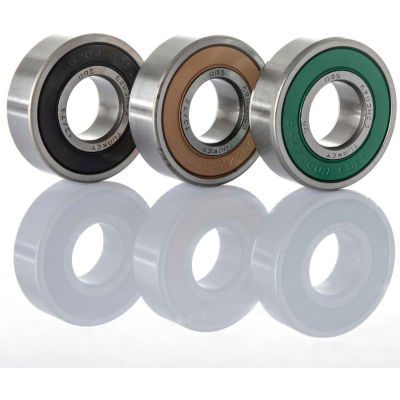

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

Item #: WBB1766158

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 12

Price: $3.20

Save $0.16 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

ORS Deep Groove Ball Bearings. Deep Grove Ball Bearings, often called Radial Ball Bearings, accommodate radial and axial loads, and are capable of operating at higher speeds. Due to these capabilities, they are the most widely used type of bearing. ORS Deep Groove Ball Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS is offering Double Sealed and Double Shielded bearings with Snap Ring for most sizes. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more. ORS bearings are commonly used in electric motors, appliances, fans, pumps, machine tool, agriculture, clutches, conveyors, food processing, textile and many other equipment and machinery.

Product Specifications

  • BRANDORS
  • INTERNAL RADIAL CLEARANCEC3
  • BORE DIAMETER MILLIMETERS10
  • OUTER DIAMETER MILLIMETERS30
  • WIDTH MILLIMETERS9
  • PREPACKED GREASEPolyrex EM
  • CAGE MATERIALPressed steel
  • HOUSING CORNER RADIUS MAX (mm)0.6
  • STATIC LOAD (kN)2.63
  • DYNAMIC LOAD (kN)5.97
  • BEARING TYPEDouble Sealed
  • TOLERANCEISO Normal
  • HOUSING CORNER RADIUS MAX, SNAP RING SIDE (mm)0.5
  • MANUFACTURERS PART NUMBER6200-2RS
  • OPERATING TEMPERATURE- 20 / + 250°F
  • MAX SPEED / GREASE (RPM)16000
  • SHAFT FILLET CORNER RADIUS MAX (mm)0.6
