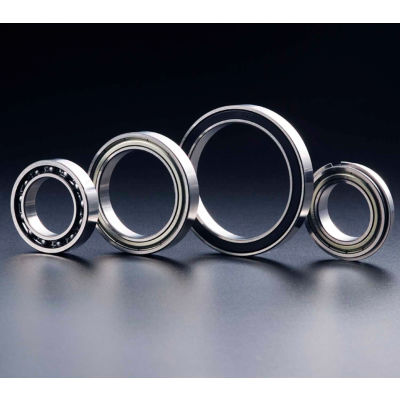

SMT 6803-2RS Deep Groove Ball Bearing, Double Sealed, OD 26mm, Bore 17mm, Metric
SMT Deep Grove Ball Bearings have uninterrupted raceway shoulders and are capable of supporting radial, axial or combined loads at higher speeds. Due to these capabilities and their competitive prices, they are the most widely used type of bearings. SMT Bearings are made of AISI 52100 bearing steel or other steels for special environments.
SMT bearings are commonly used in electric motors, appliances, fans, pumps, machine tool, agriculture, clutches, conveyors, food processing, textile, Packaging Machinery and many other equipment and machinery.
The following special environment bearings are available by a special order basis:
SMT Deep Grove Ball Bearings have uninterrupted raceway shoulders and are capable of supporting radial, axial or combined loads at higher speeds. Due to these capabilities and their competitive prices, they are the most widely used type of bearings. SMT Bearings are made of AISI 52100 bearing steel or other steels for special environments.
SMT bearings are commonly used in electric motors, appliances, fans, pumps, machine tool, agriculture, clutches, conveyors, food processing, textile, Packaging Machinery and many other equipment and machinery.
The following special environment bearings are available by a special order basis:
- SUS 440C stainless steel bearings: For corrosion resistance
- SUS 304 stainless steel bearings: For corrosion and heat resistance, and nonmagnetic applications where SUS 440C stainless steel cannot be used
- SUS 630 stainless steel bearings: For excellent corrosion resistance and higher loading, corrosion resistance is superior to SUS 440C and loading capability is higher than SUS 304
- Grease-Free bearings: For applications where lubricant cannot be allowed
- Ceramic bearings: For extremely corrosive, nonmagnetic and no-lubricant environment
Product Specifications
- BRANDSMT
- BORE DIAMETER MILLIMETERS17
- OUTER DIAMETER MILLIMETERS26
- WIDTH MILLIMETERS5
- DYNAMIC LOAD RATING (N)2230
- STATIC LOAD RATING (N)1460
- GREASE RPM15000
- CAGE MATERIALCarbon Steel
- HOUSING CORNER RADIUS MAX (mm)0.3
- BEARING TYPEDouble Sealed
- LUBRICATION TYPEKyodo Multemp PS2, Prepacked
- TOLERANCEISO Normal
- MANUFACTURERS PART NUMBER6803-2RS
- OPERATING TEMPERATURE-58 to 212°F
- SHAFT FILLET CORNER RADIUS MAX (mm)0.3
