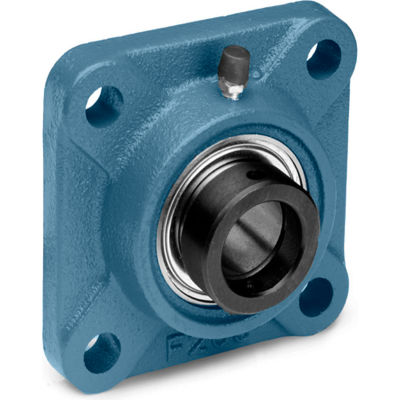

Tritan, HCFU207-23, Flange Mount Bearing, 4 Bolt Flange, Eccentric Locking Collar, Bore 36.5125 mm

Tritan, HCFU207-23, Flange Mount Bearing, 4 Bolt Flange, Eccentric Locking Collar, Bore 36.5125 mm

Item #: WBB1873302

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $27.95

Quantity

Popular item in this category

Customers Also Viewed

Tritan, HCFU207-23, Flange Mount Bearing, 4 Bolt Flange, Eccentric Locking Collar, Bore 36.5125 mm

Features:

  • Standard duty square flange unit
  • Eccentric locking collar
  • Cast-iron housing
  • Wide inner ring bearing
  • Dual heavy-duty slinger type contact seals
  • Anti-Rotation device
  • Triple lip seals (R3 suffix) optional

Product Specifications

  • BRANDTritan
  • INTERNAL RADIAL CLEARANCE0.013 - 0.033
  • BORE DIAMETER MILLIMETERS36.5125
  • WIDTH MILLIMETERS117
  • DYNAMIC LOAD RATING (N)5777.59
  • STATIC LOAD RATING (N)3439.58
  • MAXIMUM TEMPERATURE250 F
  • CONSTRUCTIONCast Iron
  • MOUNTING HOLE CENTER MILLIMETER92
  • NUMBER OF BOLTS4
  • BOLT HOLE SIZE7/16" / M12
  • OVERALL LENGTH (MM)117
  • OVERALL HEIGHT (MM)53.3
  • MOUNTING SURFACE TO CENTERLINE OF SHAFT (MM)21
  • LOCKING TYPEEccentric Locking Collar
  • BEARING TYPEMounted Bearing Unit
  • INSERTHC207-23
  • OVERALL WIDTH (MM)117
  • DESCRIPTION4 Bolt Flange - Wide Inner Ring Insert - Eccentric Locking Collar
  • MANUFACTURERS PART NUMBERHCFU207-23
  • BEARING MATERIALAISI 52100 Steel
