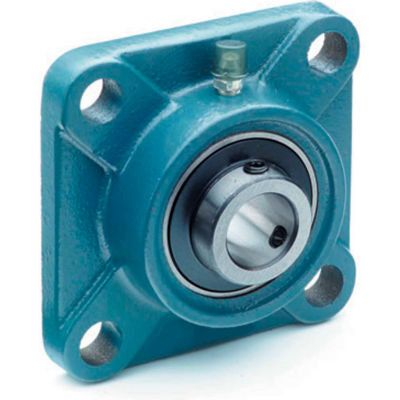

Tritan, UCF217-52, Flange Mount Bearing, 4 Bolt Flange, Set Screw Locking, Bore 82.55 mm

Tritan, UCF217-52, Flange Mount Bearing, 4 Bolt Flange, Set Screw Locking, Bore 82.55 mm

Item #: WBB1873323

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $162.95

Quantity

Popular item in this category

Customers Also Viewed

Tritan, UCF217-52, Flange Mount Bearing, 4 Bolt Flange, Set Screw Locking, Bore 82.55 mm

Features:

  • Standard duty square flange unit, set screw locking
  • Cast-iron housing
  • Wide inner ring bearing
  • Dual heavy-duty slinger type contact seals
  • Anti-Rotation device
  • Triple lip seals (R3 suffix) optional

Product Specifications

  • BRANDTritan
  • INTERNAL RADIAL CLEARANCE0.024 - 0.058
  • BORE DIAMETER MILLIMETERS82.55
  • WIDTH MILLIMETERS220
  • DYNAMIC LOAD RATING (N)18771.55
  • STATIC LOAD RATING (N)14387.77
  • MAXIMUM TEMPERATURE250 F
  • CONSTRUCTIONCast Iron
  • MOUNTING HOLE CENTER MILLIMETER175
  • NUMBER OF BOLTS4
  • BOLT HOLE SIZE3/4" / M20
  • OVERALL LENGTH (MM)220
  • OVERALL HEIGHT (MM)87.6
  • MOUNTING SURFACE TO CENTERLINE OF SHAFT (MM)36
  • LOCKING TYPESet Screw
  • BEARING TYPEMounted Bearing Unit
  • OVERALL WIDTH (MM)220
  • INSERTUC217-52
  • DESCRIPTION4 Bolt Flange - Wide Inner Ring Insert - Set Screw
  • MANUFACTURERS PART NUMBERUCF217-52
  • BEARING MATERIALAISI 52100 Steel
