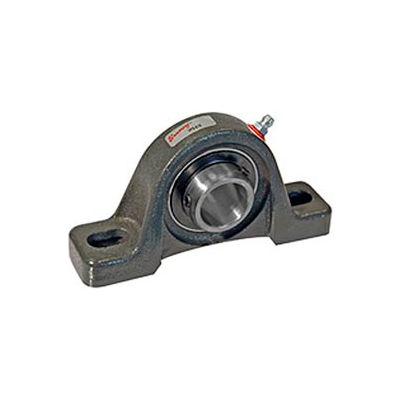

Pillow Block Ball Bearing
Normal duty, cast iron housing material, 2-1/4" bore diameter and set screw locking type. Centerline of shaft to mounting surface is 1-5/32", mounting bolt size is 5/8" and mounting holes center to center is 1-5/32". Dimensions: 9-1/2 L" x 2-9/16 W" x 5-9/16 H", 10.1 lbs. Temperature Range: -20° to 200°F.
Normal duty, cast iron housing material, 2-1/4" bore diameter and set screw locking type. Centerline of shaft to mounting surface is 1-5/32", mounting bolt size is 5/8" and mounting holes center to center is 1-5/32". Dimensions: 9-1/2 L" x 2-9/16 W" x 5-9/16 H", 10.1 lbs. Temperature Range: -20° to 200°F.
Product Specifications
- BRANDBrowning
- BORE DIAMETER INCHES2-1/4
- OUTSIDE DIAMETER2-1/4"
- LOCKING TYPESet Screw
- DUTYNormal Duty
- HOUSING MATERIALCast Iron
- INSERTBall Bearings
- LENGTH INCHES9-1/2
- MOUNTING SURFACE TO CENTERLINE OF SHAFT INCHES2-3/4
- HEIGHT INCHES5-9/16
- DESCRIPTIONPillow Block
- MANUFACTURERS PART NUMBERVPS-236
- MOUNTING HOLE CENTERS INCHES1-5/32
- DEPTH INCHES2-9/16
- TEMPERATURE RANGE °F-20 to 200
- WEIGHT LBS10.1
