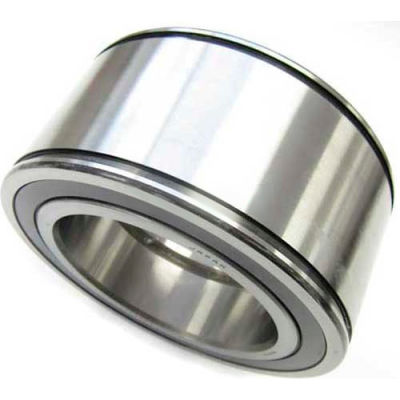

NACHI Double Sealed Sheave Bearing E5024XNNTS1, Without Snap Rings & Coating, 120MM Bore, 180MM OD

NACHI Double Sealed Sheave Bearing E5024XNNTS1, Without Snap Rings & Coating, 120MM Bore, 180MM OD

Item #: WBB937203

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $875.00

Quantity

Popular item in this category

Customers Also Viewed

NACHI Double Sealed Sheave Bearing E5024XNNTS1, Without Snap Rings & Coating, 120MM Bore, 180MM OD

Features

  • NACHI Sheave Bearing is a Double Row Full Compliment Cylindrical Roller Bearing
  • Since the bearing carries the highest Dynamic & Static Load Ratings, it is highly recommended for Rope Sheave applications
  • If snap rings are used on both sides of outer ring, it is easy to set the axial location of the bearing
  • Re-lubrication can be done through lubrication holes and groove on the inner ring or outer ring (for certain items)
  • Operating temperature range is -30° to 80°C (-35° to 175°F)

Product Specifications

  • BRANDNachi
  • BEARING STYLEWithout Snap Rings & Coating
  • BORE DIAMETER MILLIMETERS120
  • OUTER DIAMETER MILLIMETERS180
  • DYNAMIC LOAD RATING (N)400,000
  • CAGE TYPENone
  • MANUFACTURER PART NUMBERE5024XNNTS1
  • INNER WIDTH MILLIMETERS80
  • OUTER WIDTH MILLIMETERS79
  • OIL HOLES/GROOVE ON OUTTER RINGInner Ring
  • AXIAL LIMITING LOAD (N)750,000
  • SNAP GROOVE D1 (mm)176.0
  • RADIAL CLEARANCE0.065 to 0.120 mm
  • TOLERANCEISO Normal
  • SNAP GROOVE Cg (mm)71.2
  • SNAP GROOVE B (mm)4.2
  • MAX SPEED / GREASE (RPM)850
