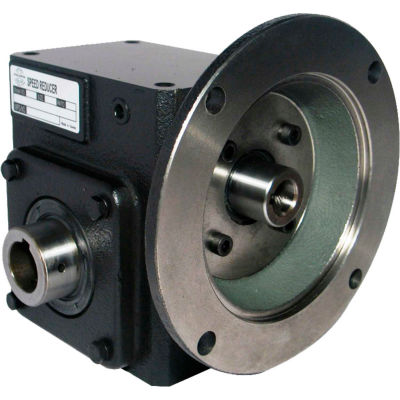

Worldwide HdRF325-10/1-H-182/4TC Cast Iron Right Angle Worm Gear Reducer 10:1 Ratio 182/4T Frame

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:
  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint

Product Specifications

  • OUTPUT SPEED (RPM)175
  • OVERHUNG LOAD LBS.1200
  • EFFICIENCY90
  • NEMA FRAME182/4TC
  • BRANDWorldWide Electric Corporation
  • CROSS REFERENCEBoston HF732; Grove HMQ232
  • MANUFACTURERS PART NUMBERHdRF325-10/1-H-182/4TC
  • BACKLASH (FT.) (ANGULAR MINUTES)15
  • DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
  • OUTPUT SHAFT THRUST LOAD (LBS.)1200
  • MAX TORQUE (IN-LBS.)2419
  • MAX INPUT HP7.19
  • WCD CENTER INCHES3.25
  • GEAR RATIO10:1
