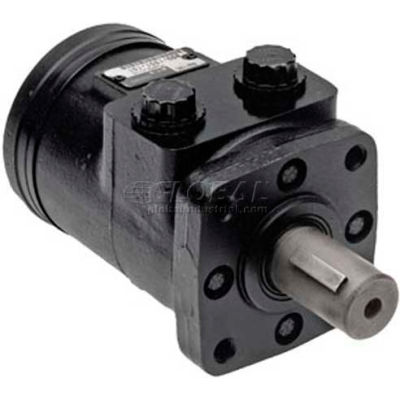

HydraStar™ Hydraulic Motor, CM074P, 4-Bolt, 19 CIPR, 192 Max RPM, 17.9 Displacement

HydraStar™ Hydraulic Motor, CM074P, 4-Bolt, 19 CIPR, 192 Max RPM, 17.9 Displacement

Item #: WBB919471

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$331.95 up to 38% OFF

Price: $206.95

Quantity

Popular item in this category

Customers Also Viewed

HydraStar™ Hydraulic Motor, CM074P, 4-Bolt, 19 CIPR, 192 Max RPM, 17.9 Displacement

HydraStar™ Hydraulic Motors HydraStar™ Series motors are economical, efficient, small, compact, and powerful, designed for medium duty applications. These motors have the industry proven spool valve design combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges with a 1" diameter straight shaft, woodruff keyway, and 1/2" NPT port provides design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughoutthe speed range of the motor, and equipment can be driven direct eliminating costly mechanical components. Other motors are available. Maximum intermittent pressure at motor inlet port of 172 Bar (2500 PSI) without regard to A Bar (A PSI) and/or back pressure ratings or combination thereof. A simultaneous maximum torque and maximum speed NOT recommended.

Product Specifications

  • TRW ROSS1MG-18-13-10
  • TRW ROSS1 DISPL.18
  • PRINCE1ADM3004RP
  • PRINCE1 DISPL.17.9
  • DISPL.17.9
  • CHAR-LYNN®1101-1007
  • CHAR-LYNN®1 DISPL.17.9
  • DISPL. CM3/R (IN3/R)293 (17.9)
  • DESCRIPTION4-Bolt, 19 CIPR
  • MAX SPEED (RPM) @ CONTINUOUS FLOW192
  • MANUFACTURER PART NUMBERCM074P
  • FLOW LPM (GPM) CONTINUOUS57 (15)
  • FLOW LPM (GPM) INTERMITTENT76 (20)
  • BRANDHydrastar
  • ORBMARK®1HD124W4FSWP
  • ORBMARK®1 DISPL.17.9
  • WHITE®1RS-18-0301
  • WHITE®1 DISPL.18
  • PRESSURE BAR (PSI) CONTINUOUS93 (1350)
  • PRESSURE BAR (PSI) INTERMITTENT124 (1800)
  • TORQUE LPM (LB-IN) CONTINUOUS351 (3110)
  • TORQUE LPM (LB-IN) INTERMITTENT466 (4121)
  • MIN. STARTING TORQUE NM (LB-IN) @ CONT. PRESSURE282 (2500)
  • MIN. STARTING TORQUE NM (LB-IN) @ INT. PRESSURE388 (3430)
  • WEIGHT12.56 lbs.
