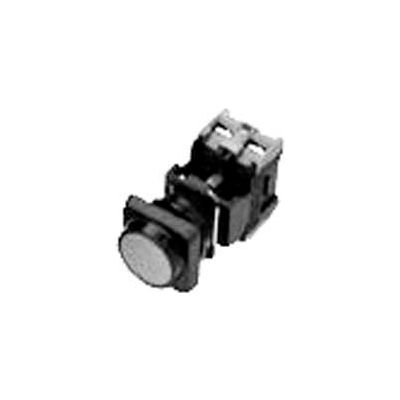

Advance Controls 104298, 22mm Non Metal, Lit, Sq Ext Head Push Button-Momentary Operation Yellow

Advance Controls 104298, 22mm Non Metal, Lit, Sq Ext Head Push Button-Momentary Operation Yellow

Item #: WBB613732

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $20.00

Save $1.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

22mm Non Metallic, Illuminated, Square Extended Head Push Button-Momentary Operation - Yellow

22 mm Non-Metallic Pushbuttons are heavy duty industrial control devices available with a wide range of Illuminated and Non-Illuminated Operators. The buttons are fully gasketed for Type 4X (IP65) protection. This is to prevent the entrance of water, oil, and dirt past the operator into the enclosure. The modular construction makes "on the job" assembly both fast and simple. The contact blocks are "stackable" (up to a maximum of 4 contact blocks) allowing many combinations of control layouts.

Product Specifications

  • BRANDAdvanced Controls
  • MANUFACTURERS PART NUMBER104298
  • COLORYellow
  • VOLTAGE600 VAC
  • CERTIFICATIONSUL 508 Listed, cUL
  • ENVIRONMENTAL RATINGIP65
  • WEIGHT LBS.2 lbs
  • AWG12 AWG
  • WIDTH36mm
  • HEIGHT33mm
  • GP AMPS10
  • MOUNTING STYLE22mm Hole
  • DEPTH55mm
  • CONSTRUCTIONSelf Extinguishing Plastic
  • AUXILIARY CONTACTS1NO+1NC
