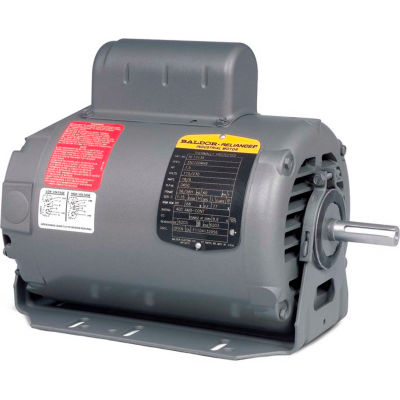

Baldor-Reliance Motor RL1304A, .5HP, 1725RPM, 1PH, 60HZ, 56, 3418L, OPEN, F1, N

Baldor-Reliance Motor RL1304A, .5HP, 1725RPM, 1PH, 60HZ, 56, 3418L, OPEN, F1, N

Item #: WBB390700

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance Single Phase HVAC Motor

This OPEN enclosure, 0.5HP, 1725RPM, 115/230V unit has heavy guage steel base, ball bearings and dynamically balanced rotors for reduced vibration and quiet operation. Suitable for mounting in any position.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERRL1304A
  • HORSEPOWER1/2
  • MOTOR RPM 60Hz1725
  • VOLTAGE115/230
  • PHASE1
  • FRAME56
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONAutomatic
  • RATED RPM1725
  • MOUNTINGResilient
  • FULL LOAD AMPS8.4/4.8/4.2
  • SHAFT DIAMETER0.625
  • BEARING TYPEBall
  • INSULATION CLASSB
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES16.5
  • DUTYCONT
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH11.59
  • is_motorYes
  • LENGTH INCHES14
  • WIDTH INCHES11.125
  • HEIGHT INCHES10
  • WEIGHT LBS19
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES0.5
  • FL EFFICIENCY62
  • DESIGN CODEN
  • OPPOSITE END BEARING6203
  • FL AMPS8.4/4.2
  • POLES4
  • FRAME SIZE48Z
  • ENCLOSUREOPEN
