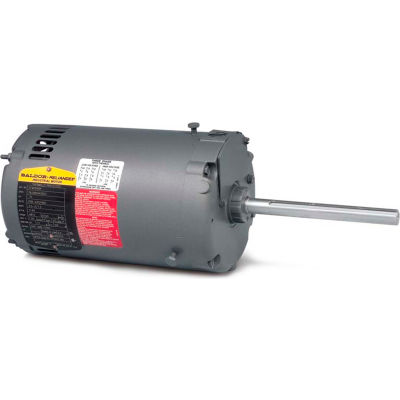

Baldor-Reliance Motor CFM3146A, .75HP, 1140RPM, 3PH, 60HZ, 56YZ, 3520M, OPEN, F

Baldor-Reliance Motor CFM3146A, .75HP, 1140RPM, 3PH, 60HZ, 56YZ, 3520M, OPEN, F

Item #: WBB388644

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$558.00 up to 20% OFF

Price: $445.95

Save $22.30 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1140RPM,3PH,60HZ,56YZ,3520M,OPEN,F

Features:
  • Corrosion resistant finish
  • Ball bearings
  • Dynamically balanced for quiet operation
  • Automatic reset thermal
  • Shaft 6 long - keyway and flat are 90° apart
  • Reconnectable leads in pulley endplate
Typical Applications:
Designed specifically for use on commercial refrigeration condenser units and air conditoning units.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCFM3146A
  • HORSEPOWER3/4
  • MOTOR RPM 60Hz1140
  • VOLTAGE208-230/460
  • PHASE3
  • FRAME56YZ
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONAutomatic
  • RATED RPM1140
  • MOUNTINGNo Mounting
  • FULL LOAD AMPS3.0/2.8/1.4
  • BEARING TYPESealed
  • DRIVE END BEARING SIZE6311
  • OPPOSITE END BEARING SIZE6205
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C60
  • LENGTH LESS SHAFT INCHES19
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH15.55
  • is_motorYes
  • LENGTH INCHES19
  • WIDTH INCHES13.75
  • HEIGHT INCHES13-3/4
  • WEIGHT LBS38
  • RPM RANGE1101-1200
  • SHAFT DIAMETER INCHES0.625
  • SHAFT LENGTH INCHES0.625
  • FL EFFICIENCY75.5
  • DESIGN CODEB
  • FL AMPS3-2.8/1.4
  • POLES6
  • DRIVE END FLANGEStandard
  • ENCLOSUREOPEN
