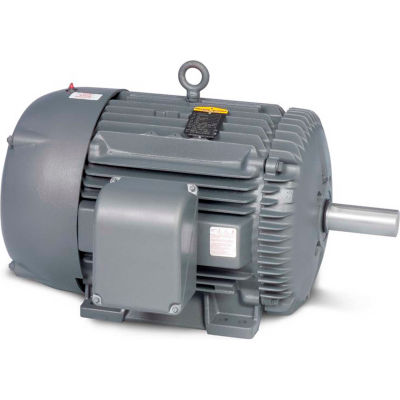

Baldor-Reliance Motor CTM1763T, 25HP, 1775RPM, 3PH, 60HZ, 284T, TEFC, FOOT

Baldor-Reliance Motor CTM1763T, 25HP, 1775RPM, 3PH, 60HZ, 284T, TEFC, FOOT

Item #: WBB388334

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,430.00 up to 20% OFF

Price: $4,336.00

$722.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,336.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 25HP,1775RPM,3PH,60HZ,284T,TEFC,FOOT,

Features:
  • Premium efficient severe duty multi-speed axial fan motors
  • Class F insulation, 1.15 service factor
  • Lip seal, shaft slinger, and T-drain in both ends
  • Electrical design is single winding variable torque
  • Double shielded ball bearings
  • Burndy type YA compression lead lugs
  • 3 year warranty
Typical Applications:
High moisture environment fan motor for mounting in the air stream of cooling towers.

Product Specifications

  • BRANDBaldor-Reliance
  • MANUFACTURERS PART NUMBERCTM1763T
  • HORSEPOWER25
  • MOTOR RPM 60Hz1775/885
  • VOLTAGE460
  • PHASE3
  • FRAME284T
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS2S-1W-VT
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONNone
  • RATED RPM1775/885
  • MOUNTINGRigid
  • FULL LOAD AMPS32
  • SHAFT DIAMETER1.875
  • BEARING TYPEBall
  • DRIVE END BEARING SIZE6203
  • INSULATION CLASSF
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • LENGTH LESS SHAFT INCHES27
  • DUTYContinuous
  • APPROVALS OR CERTIFICATIONSCSA; UR
  • OVERALL LENGTH27.93
  • is_motorYes
  • LENGTH INCHES31
  • WIDTH INCHES19.5
  • HEIGHT INCHES19.5
  • WEIGHT LBS342
  • RPM RANGE1701-1800
  • SHAFT DIAMETER INCHES1.625
  • SHAFT LENGTH INCHES1.625
  • FL EFFICIENCY91.7
  • DESIGN CODE--
  • FL AMPS31.2/12.1
  • FRAME SIZE284T
  • POLES4; 8
  • DRIVE END FLANGEStandard
  • ENCLOSURETEFC
